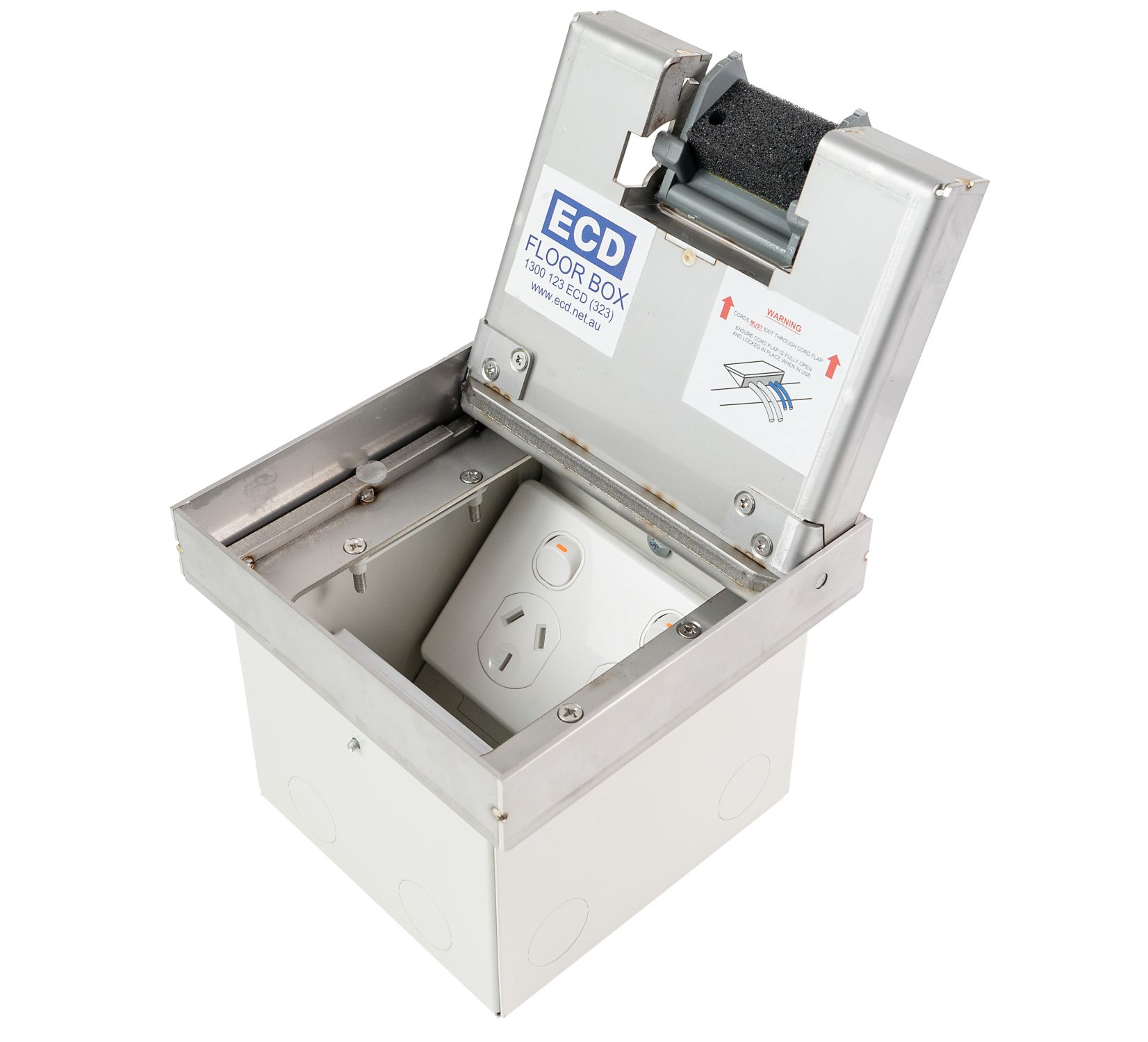

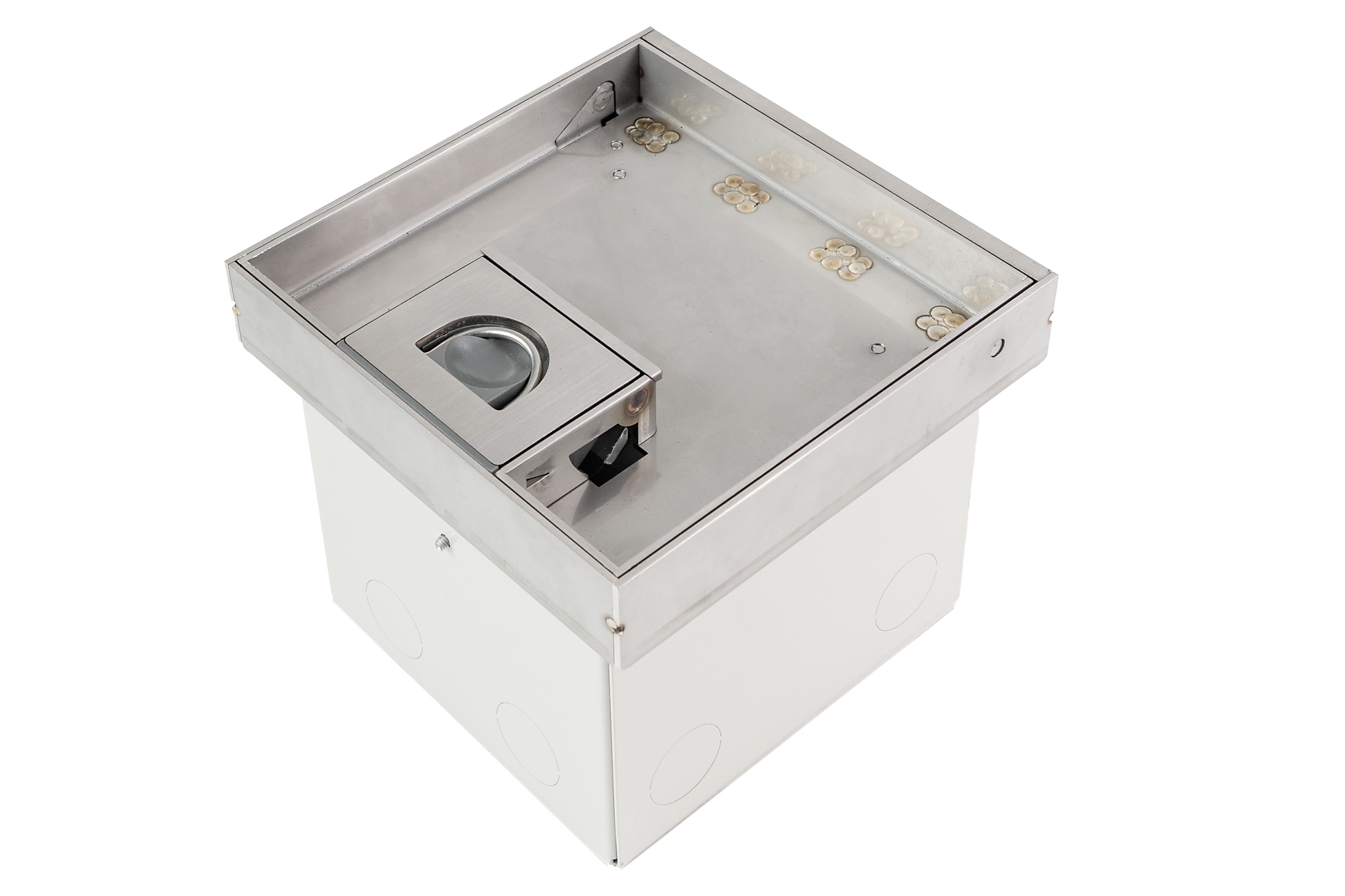

Stainless Steel Floor Box - 20mm Deep Recessed

CAT NO. FB1SDR

Capacity:

1 standard size GPO
1 No. 3 Gang Data Plate

Box Size:

150 x 150 x 127mm Deep

Lid Material:

Stainless Steel

Lid Rebate:

20mm Deep

Suitable for:

Compact Installations

Load Rating:

120 kg (per foot = foot traffic)

Key Features

  • A versatile, practical and decorative solution for your open plan cabling needs.
  • Recessed stainless steel lid and frame with 20mm rebate for floor finish        (typically polished timber boards or ceramic tiles).
  • Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
  • 304 Grade solid stainless steel lid construction with No. 4 Linished finish.
  • Robust cable exit flap with Cable Shield® and stainless steel lifting handle.
  • Capacity 1 x double GPO and 3 x data (grid plate supplied).
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • Supplied with temporary construction lid.
  • This product has been examined in accordance with
    AS 3000 and conforms to A.C.M.A. requirements.
