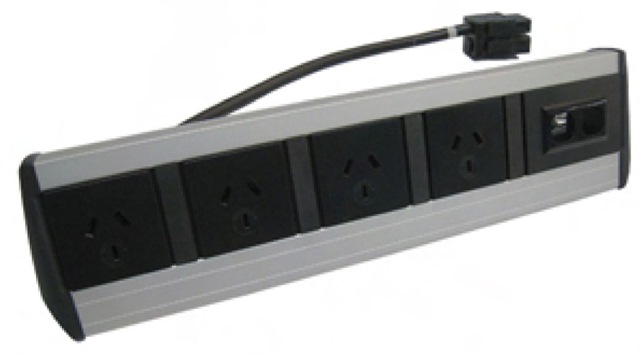

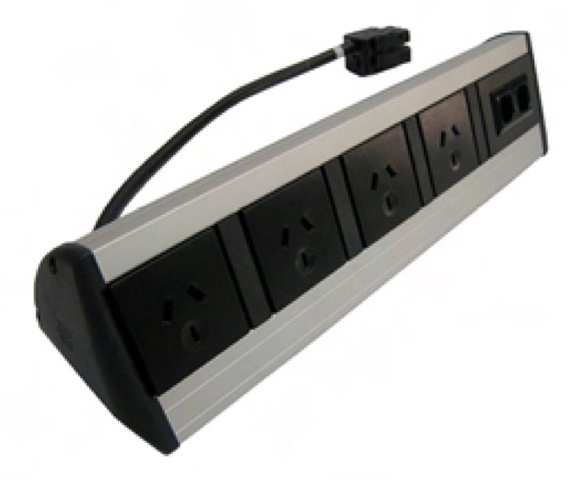

Ambassador Desktop Box
CAT NO. DTA4P4D – Ambassador
| Capacity: | Available in 2P, 4P, 2P2D, 4P2D and 4P4D configurations |
| Size: | 80 x 80mm high |
| Suitable for: | Category 6A cabling |
| Colour: | Anodised aluminium with black sockets View Colours |
Key Features
- Desktop rail for power and data, clamps directly onto desktop.
- Standard unit has 4 x autoswitched GPOs (10 amp soft wired) and provision to mount 4 x data. Other arrangements available to order.
- Anodised aluminium extrude body, standard finish in silver with black sockets and communication fascias.
- Size is 80 x 80 mm high.
- Fixing via standard ‘C’ clamps – the ‘C’ clamp accommodates a desk top thickness of between 23mm to 35mm. To tighten the clamp use thumb wheel fitted. (Two clamps required to secure each box.) Catalogue No. DMC2335
- All standard options are supplied with 500mm in/out soft wiring connector lead.
- Fully integrated power, voice and data.
- Suitable for Category 6A data cabling.
* Click images to enlarge
