Universal Power & Data Rail
CAT NO. DTU4P4D – Universal
| Capacity: | Available in 2P, 4P, 2P2D, 4P2D and 4P4D configurations |
| Size: | 45 x 65mm high |
| Suitable for: | Category 6A cabling |
| Colour: | Anodised aluminium with black sockets View Colours |
Key Features

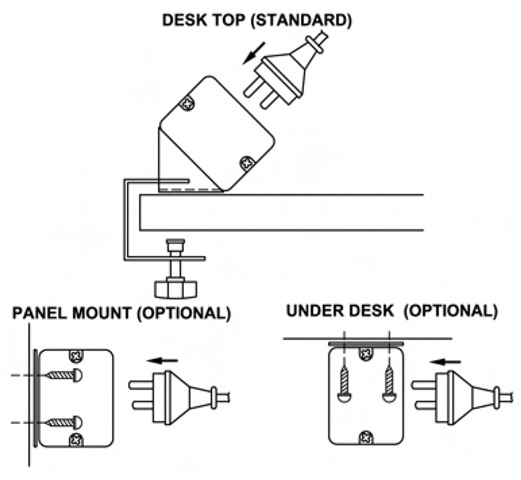

- Desktop rail for power and data, clamps directly onto desktop (standard).
- Under desk rail for power and data, fixed to underside of desk (suitable mounting brackets available on request).
- Panel mounted rail for power and data, fixed to panel (suitable mounting brackets available on request).
- Standard unit has 4 x autoswitched GPOs (10 amp soft wired) and provision to mount 4 x data (other arrangements available to order).
- Anodised aluminium extrude body, standard finish in silver with black sockets and communication fascias.
- Size is 45 x 65 mm high.
- Fixing via standard ‘C’ clamps – the ‘C’ clamp accommodates a desk top thickness of between 23mm to 35mm. To tighten the clamp use thumb wheel fitted. (Two clamps required to secure each box. Other fixing methods available to order.) Catalogue No. DMC2335
- All standard options are supplied with 500mm in/out soft wiring connector lead.
- Fully integrated power, voice and data.
- Suitable for Category 6A data cabling.
