Soft Wired Connector Leads
CAT NO. ECDCL
| Suitable for: | Linking together of the soft wired circuit |
| Lengths: | From 250 to 10,000 mm |
| Colours: | Black & White |
Key Features
- Used as an interconnecting lead between a power source and a soft wired power outlet.
- Male to female soft wiring connector leads (20 Amp) are available in lengths from 250mm to 10,000mm.
- Compatible with the ECD Soft Wiring System.
- Standard colours are Black & White.

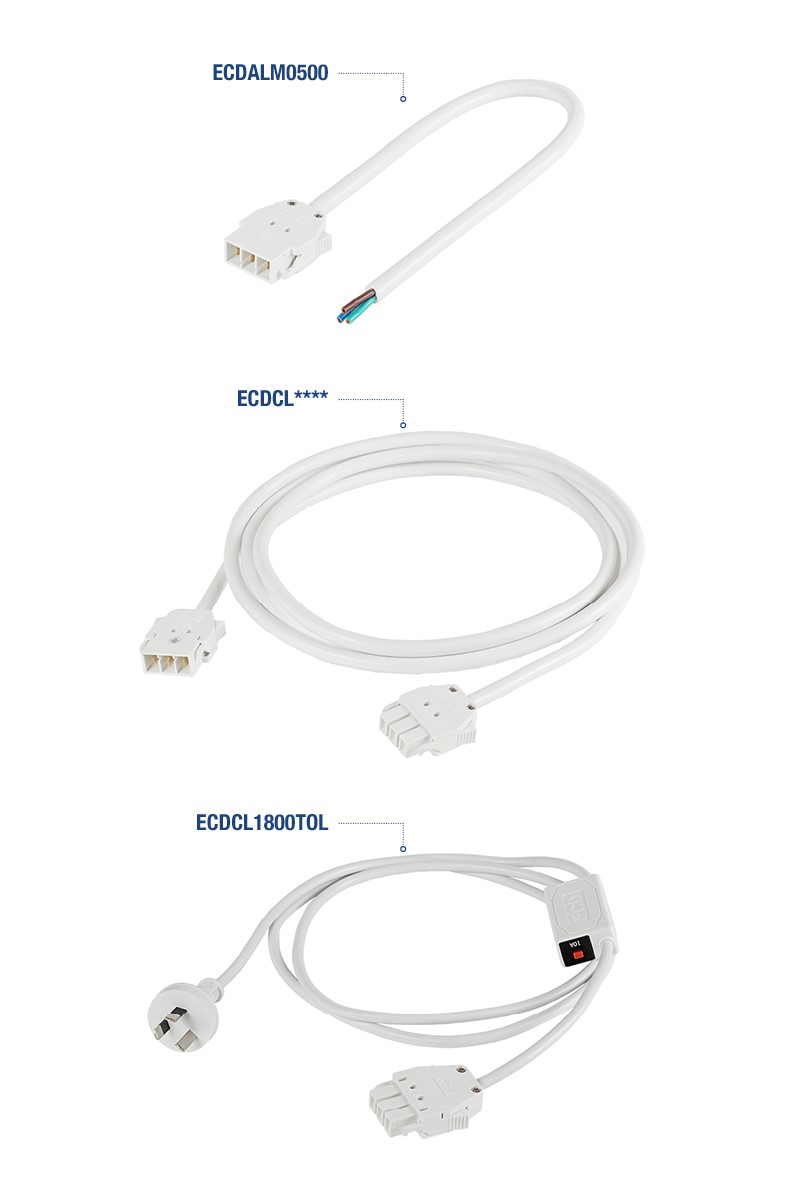

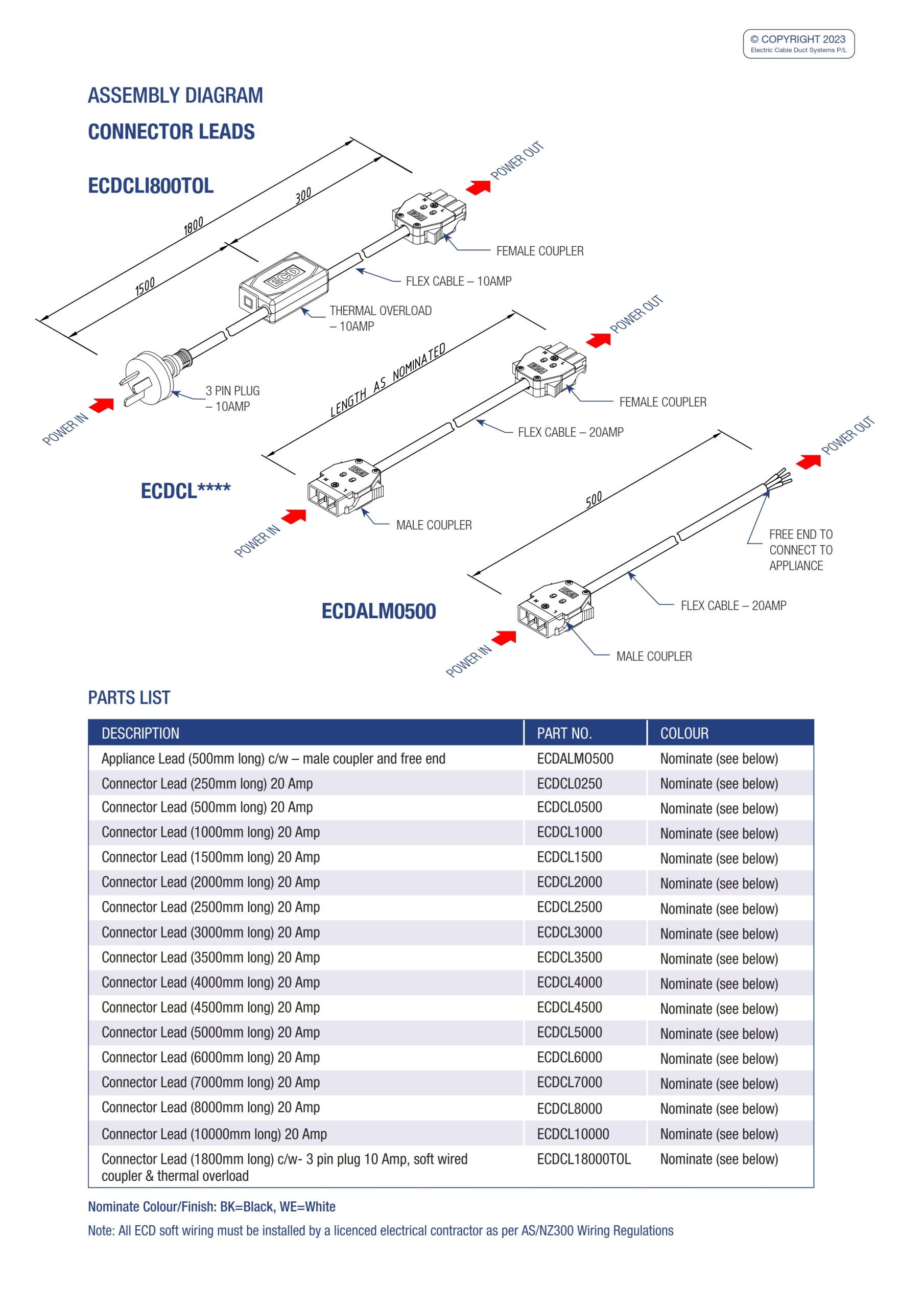

- ECDCL1800TOL connects from a standard 10 Amp 3 pin socket to a soft wired
circuit. It includes a thermal overload to prevent overloading of the 10 Amp circuit. - Other ECDCL**** leads are interconnecting leads used to achieve a desired length.
- ECDALM0500 can be wired into an appliance, allowing it to be connected to the soft wired system.
- Test Plugs (ECDSWTP) are available for testing soft wired circuits.
- Products comply with AS/NZS61535:2011, AS/NZS60227.5:2002 – refer approval nos GMA-515332 & SAA090324EA.
