Soft Wired Power Modules
CAT NO. ECDPM
| Suitable for: | Soft wired power |
| Capacity: | 2 or 4 gang auto switch GPOs – 10 Amp |
| Colours: | Black & White |
Key Features

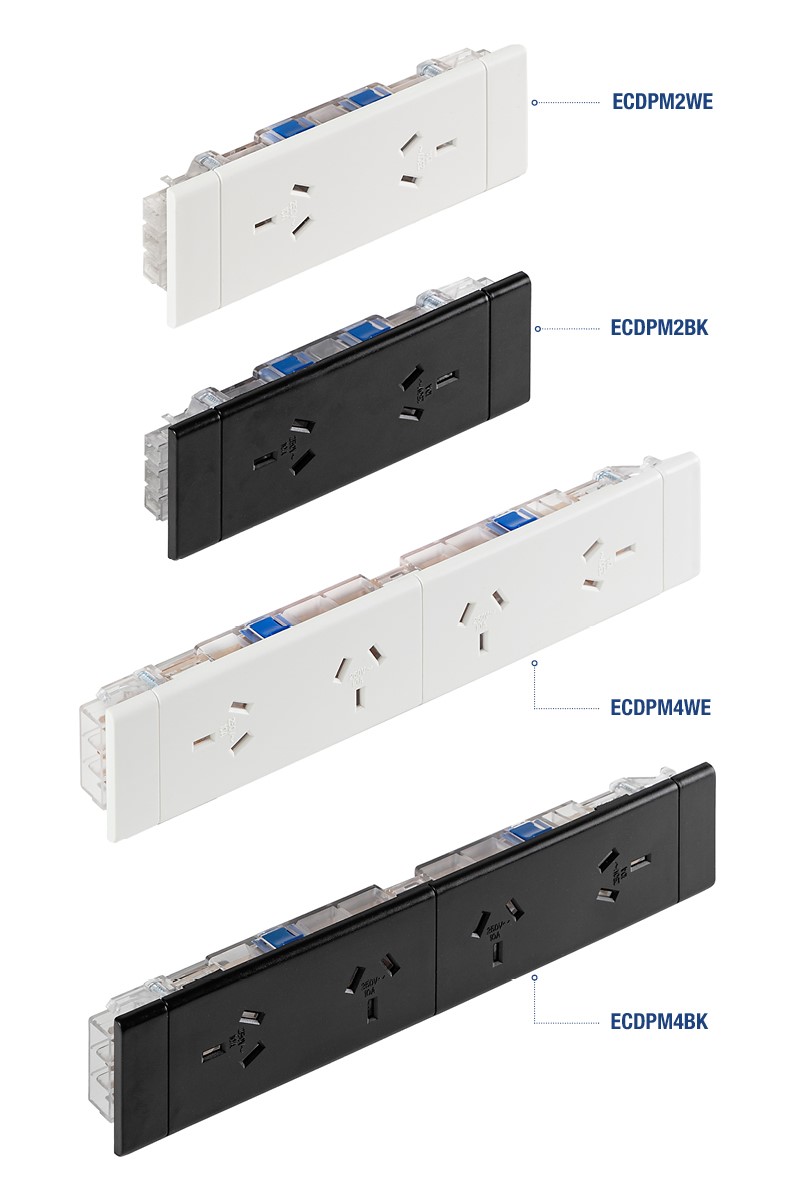

- 2 or 4 gang Power Modules.
- Auto switched socket outlets – 10 Amp.
- Compatible with the ECD Soft Wiring System.
- Standard colours are Black & White.
- Rotated earth for outer sockets can assist with mounting of larger power pack transformers.

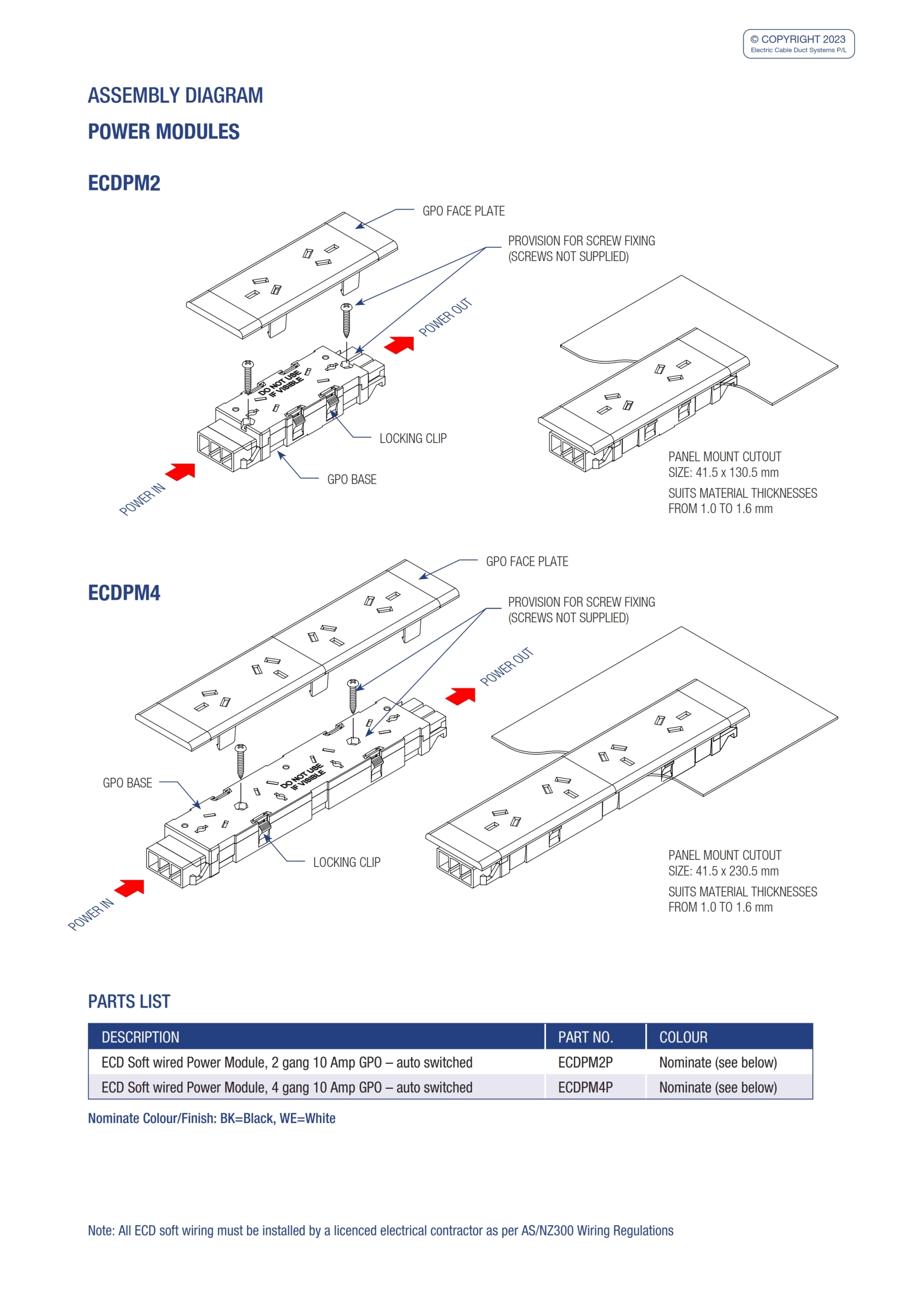

- Removeable face plate with concealed screw fixing provision for surface mounting of GPO base.
- Suits industry standard cutouts with material thicknesses from 1.0 up to 1.6mm thick.
- Test Plugs (ECDSWTP) are available for testing soft wired circuits.
- Compatible with ECD Soft Wired Mounting Accessories.
- Products comply with AS/NZS61535:2011, AS/NZS3100:2022 & AS/NZS3112:2017 – refer approval no. GMA-515331-EA.
* Click images to enlarge
