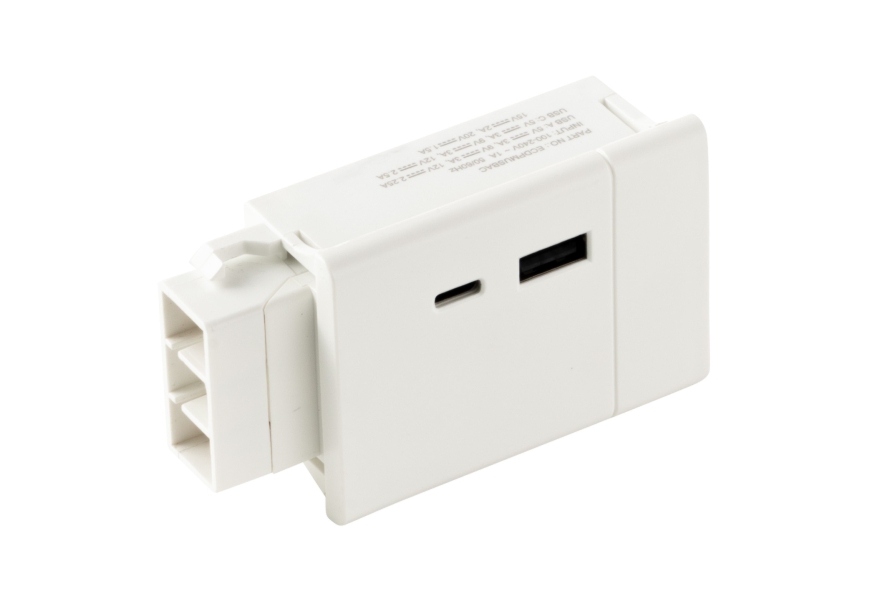

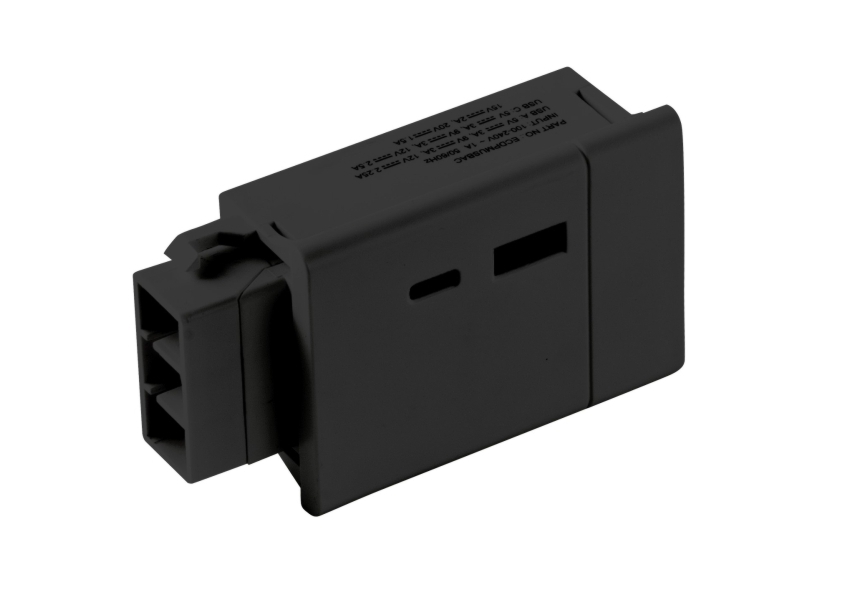

Soft Wired Fast Charge USB
CAT NO. ECDPMUSBAC
| Suitable for: | Soft wired power |
| Capacity: | 1 x USB A and 1 x USB C |
| Compatible with: | ECD 2 + 4 gang soft wired power modules |
| Colours: | Black & White |
Key Features
- Fast charging USB power module with 1 x USB A and 1 x USB C sockets.
- Maximum power supply – USB A socket
- 5 Volts x 3.0 Amps = 15 Watts
- 9 Volts x 3.0 Amps = 27 Watts
- 12 Volts x 2.25 Amps = 27 Watts
- Maximum power supply – USB C socket
- 5 Volts x 3.0 Amps = 15 Watts
- 9 Volts x 3.0 Amps = 27 Watts
- 12 Volts x 2.5 Amps = 30 Watts
- 15 Volts x 2.0 Amps = 30 Watts
- 20 Volts x 1.5 Amps = 30 Watts
- Standard colours are black and white.
- Compatible with the ECD soft wiring system.

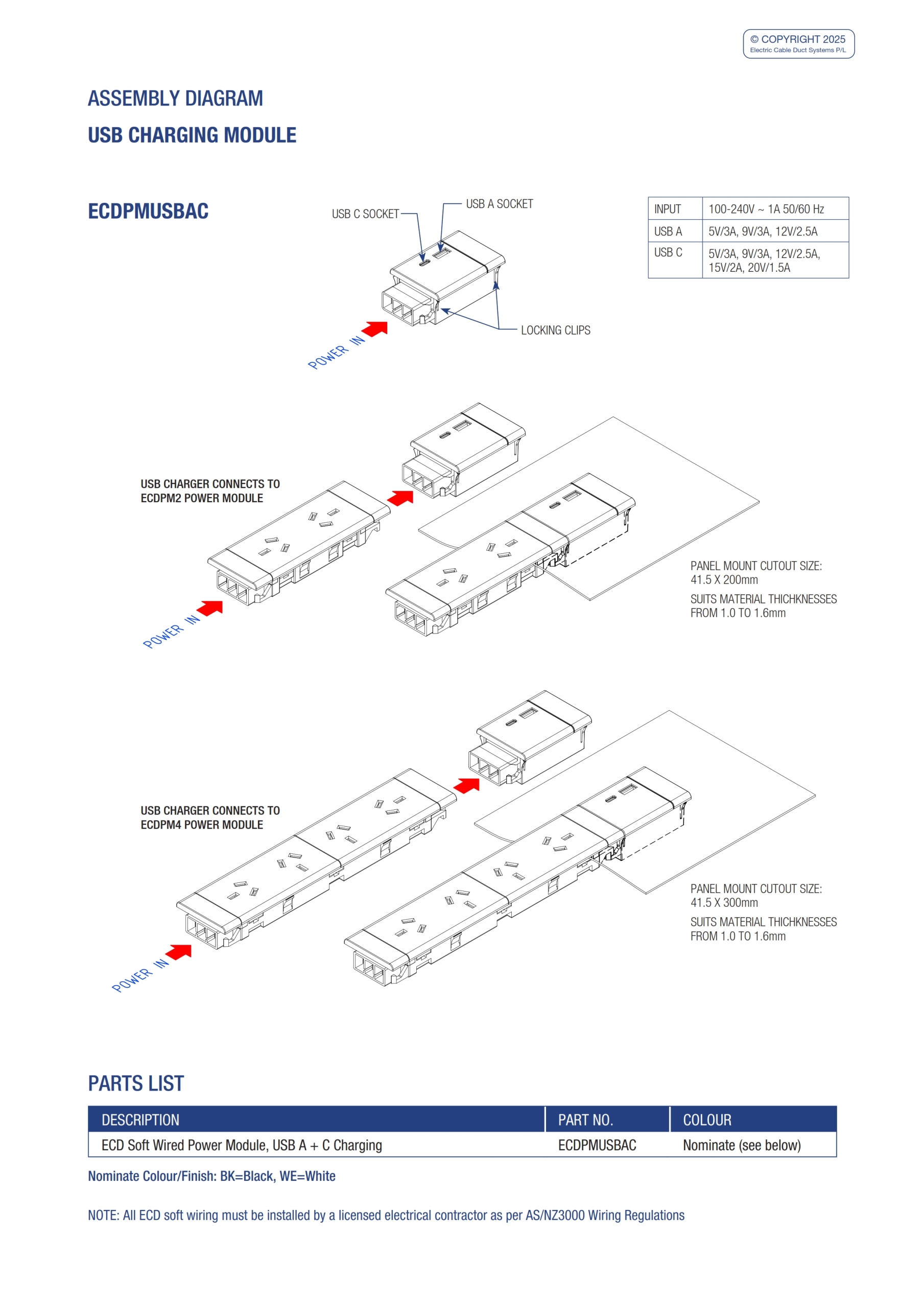

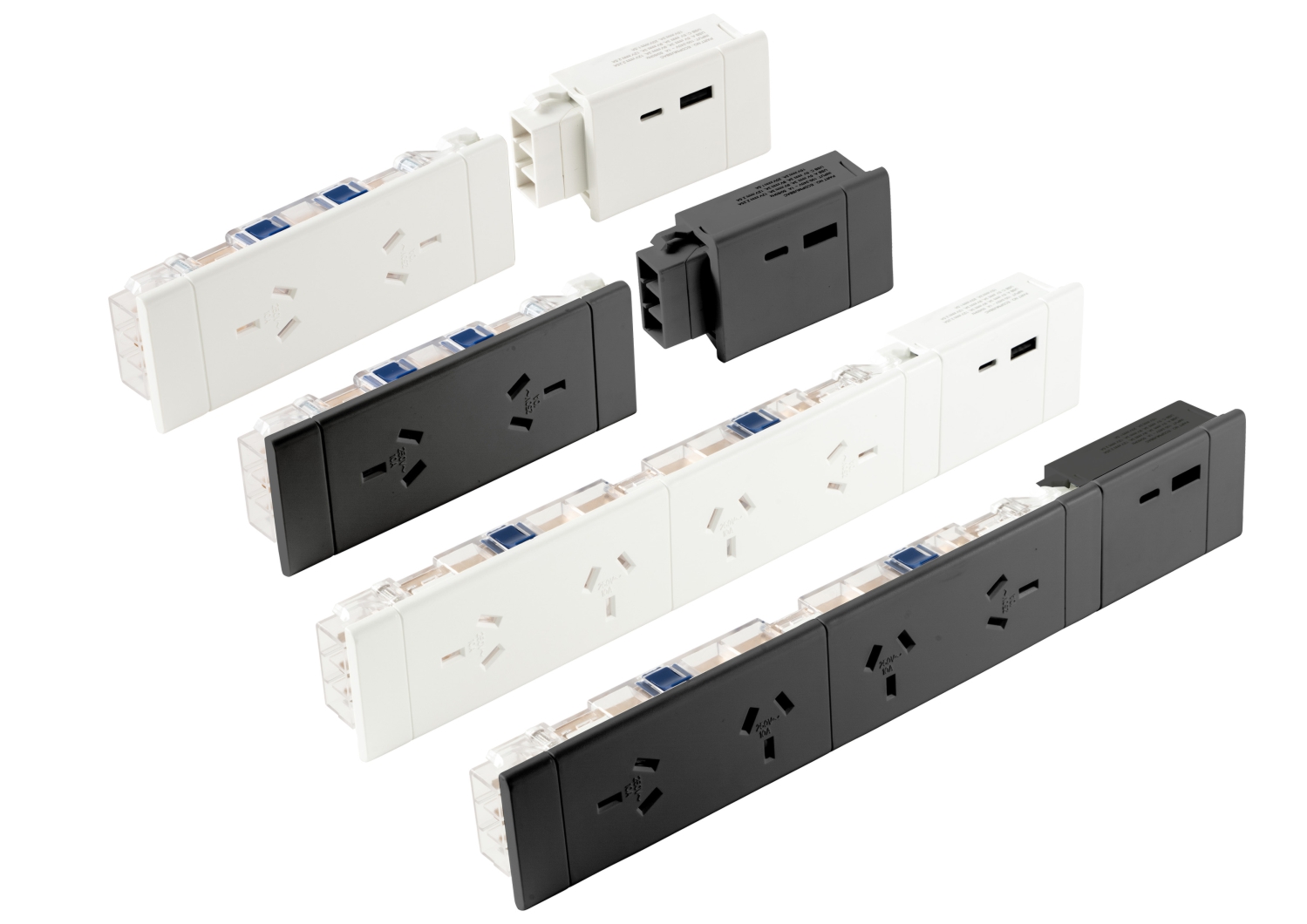

- Connects to ECDPM2 and ECDPM4 power modules.
- Compatible with ECD soft wired mounting accessories, power rails and in desk boxes.
- Suits industry standard cutouts with material thickness from 1.0 up to 1.6mm thick.
- Products comply with AS/NZS61558.2.16:2022 (inc. A1), AS/NZS61558.1.16:2018 (inc. A1) and AS/NZ61535.1:2011 – Refer approval no. GMA-520822-EA.
