Soft Wired Couplers
CAT NO. ECDTC, MC, FC
| Suitable for: | Connecting to the soft wired circuit |
| Colours: | Black & White |
Key Features
- ECDTC – used to convert 1 soft wired input into 2 outputs.
- ECDFC/MC – used to shorten a soft wired lead to a custom length.
- ECDFC/MC – can be wired to an appliance (ECDMC = power in, ECDFC = power out) to allow the appliance to be powered by the soft wired circuit.
- ECDFC – can be used as an alternate starter socket where space is limited & doesn’t allow for a full size starter (ECDSSP) eg- in shallow floor boxes.
- 20 Amp rated.
- Compatible with the ECD Soft Wiring System.

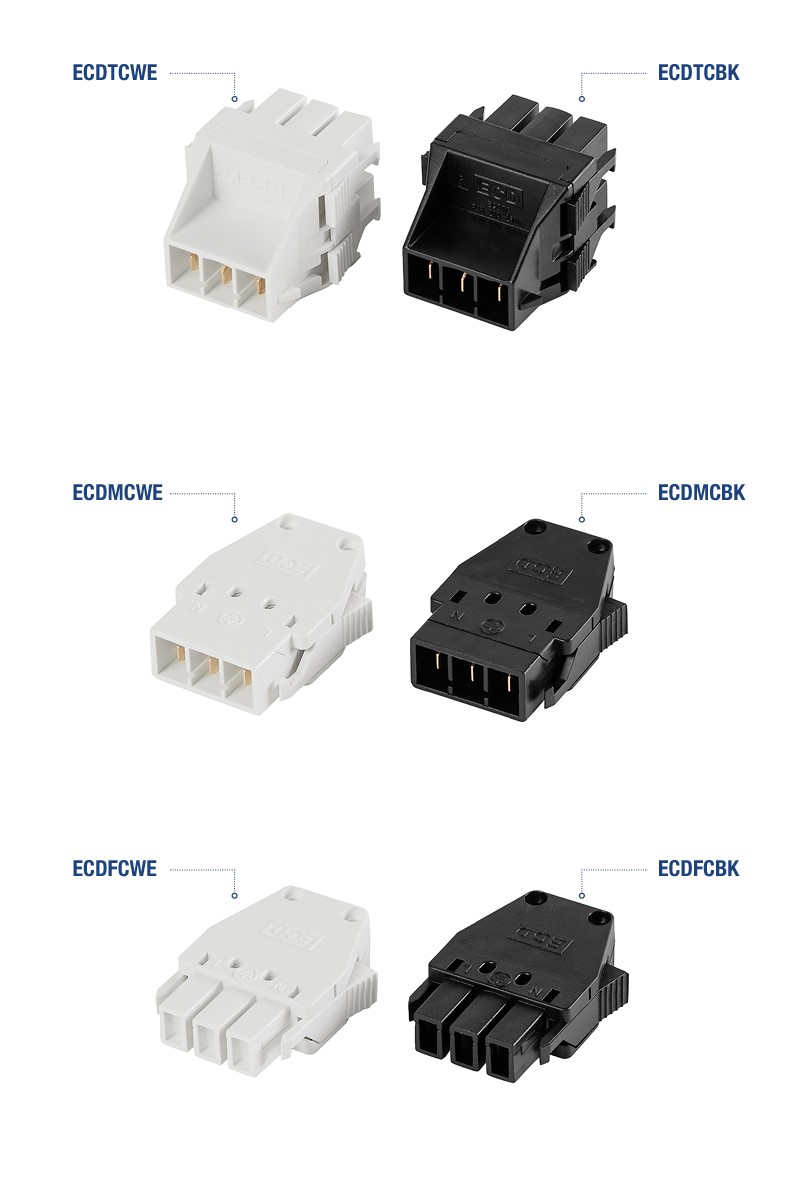

- Standard colours are Black & White.
- Test Plugs (ECDSWTP) are available for testing soft wired circuits.
- Products comply with AS/NZS61535:2011 – refer approval nos GMA-515334-EA & SAA202417.

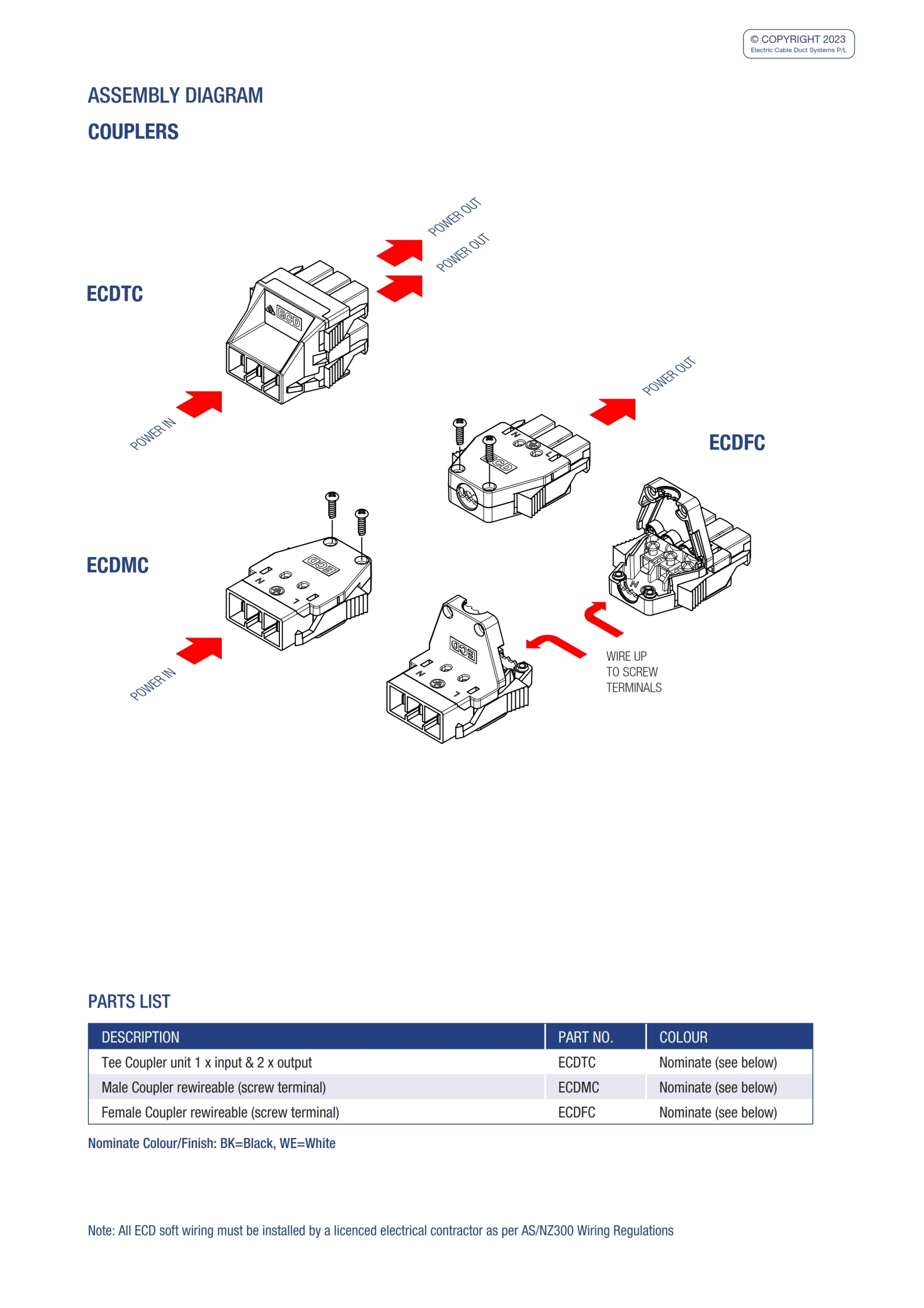

* Click images to enlarge
