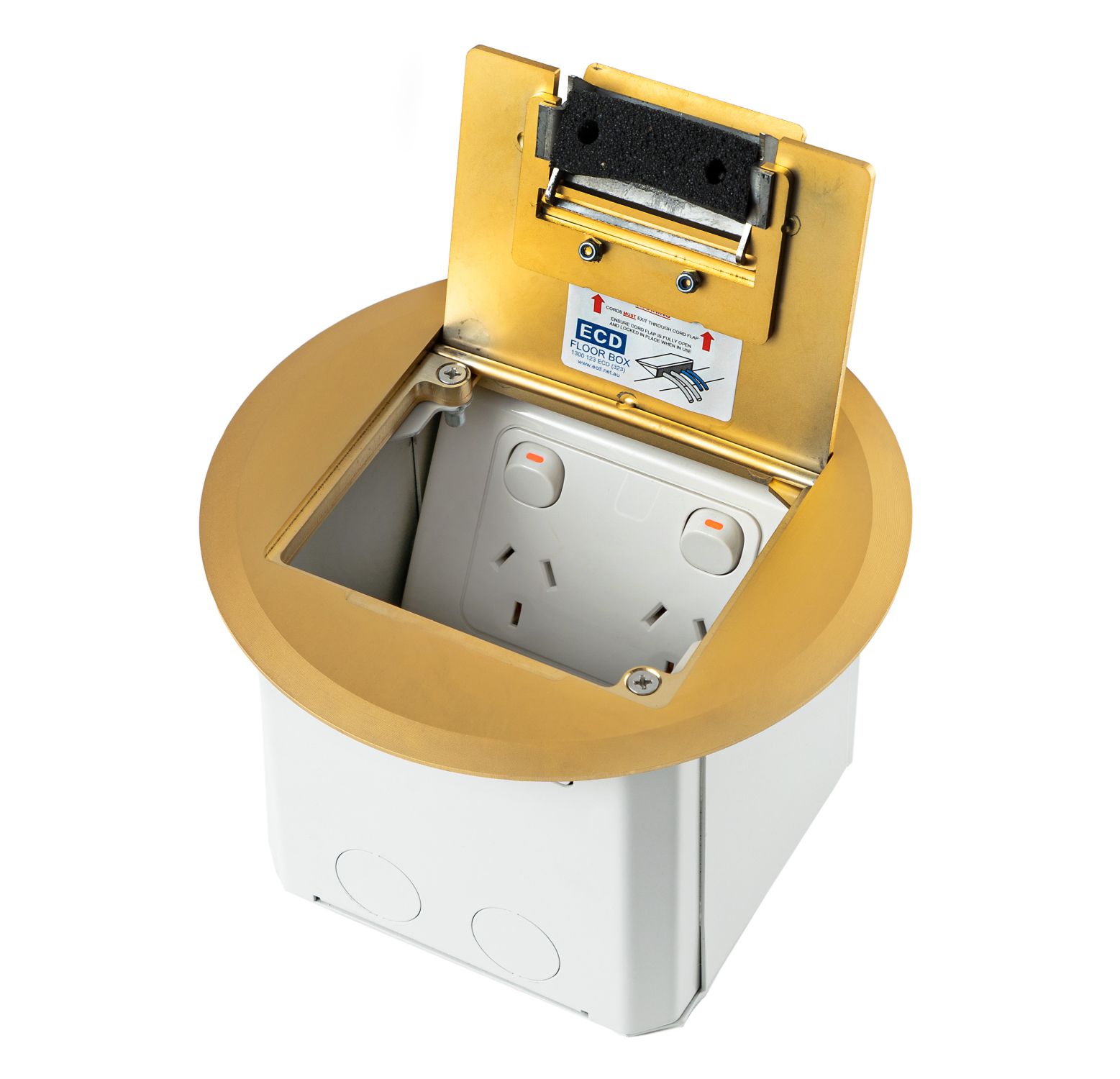

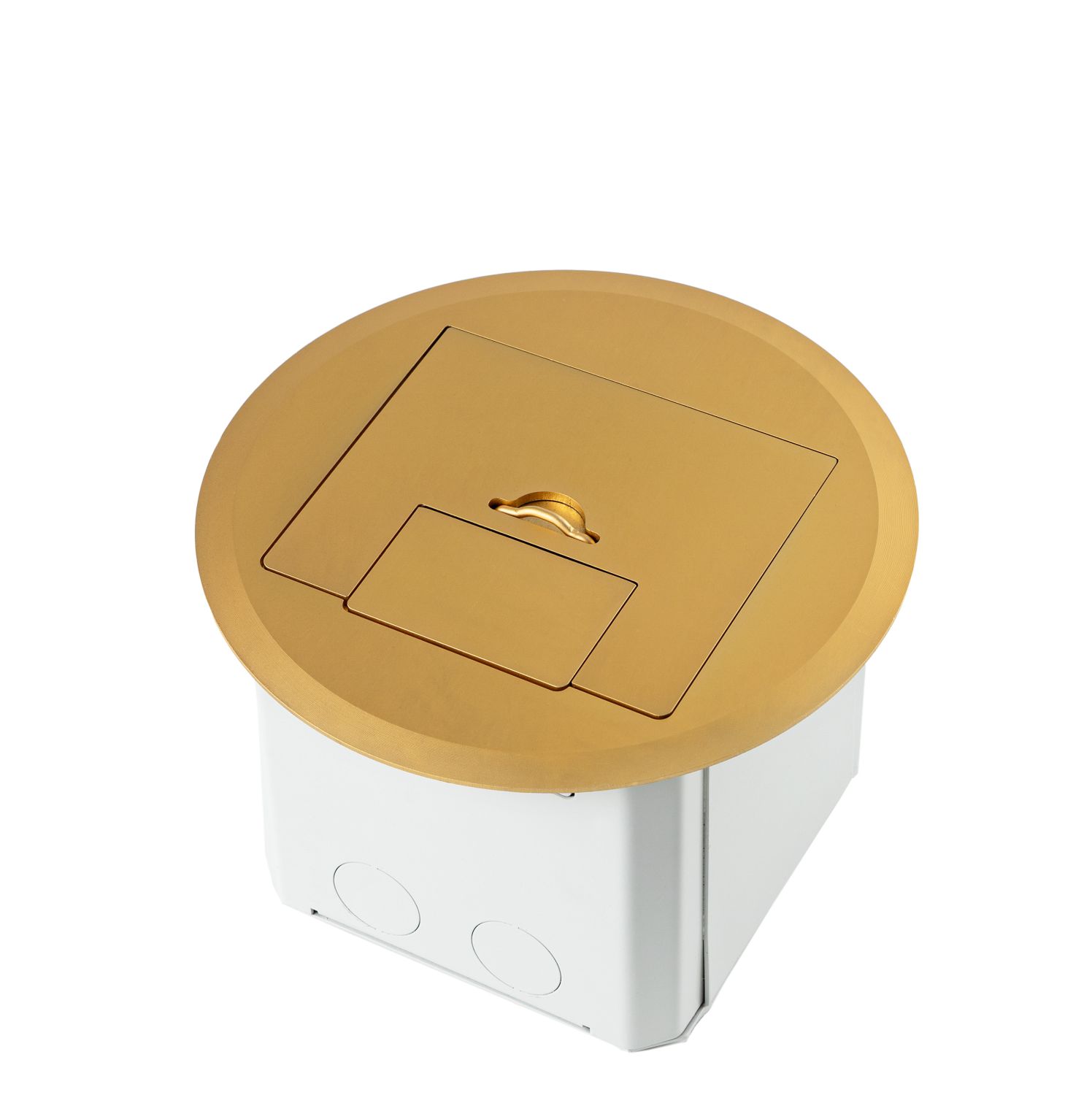

Flush Floor Box Compact, Brass, Round Lid
CAT NO. FB175BR
| Capacity: | 1 x standard size GPO and |
| Box Size: | 125 x 125 x 110mm Deep |
| Lid Size: | 175mm diam. x 3mm thick |
| Lid Material: | Brass plated stainless steel |
| Suitable for: | Compact installations |
| Load Rating: | 120kg (per foot = foot traffic) |
Key Features
- Compact and stylish, the FB175 Series of Flush Floor Boxes provide ready access to power and communication outlets recessed in the floor.
- Suitable for use in: Modern open plan living areas, home theatres, showrooms, shop-front displays, boardroom tables, schools, universities, and public buildings.
- Available in brass plated stainless steel, the hard wearing 3mm thick lid bevels down to a fine edge under foot and is suitable for use with polished floor boards, carpet, ceramic tiles and vinyl floor coverings (not suitable for use in wet areas).
- 304 Grade solid stainless (brass plated) steel with No. 4 Linished finish to meet P1 requirements for slip resistance in public spaces (dry areas).
- Capacity for 1 x standard size GPO and 3 x data (bezels supplied).
- Cable exit flap allows cables to exit the box when in use and close flat when not in use.
- A versatile, practical and decorative solution to your open plan cabling needs.
- Supplied with temporary construction lid.
- This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
