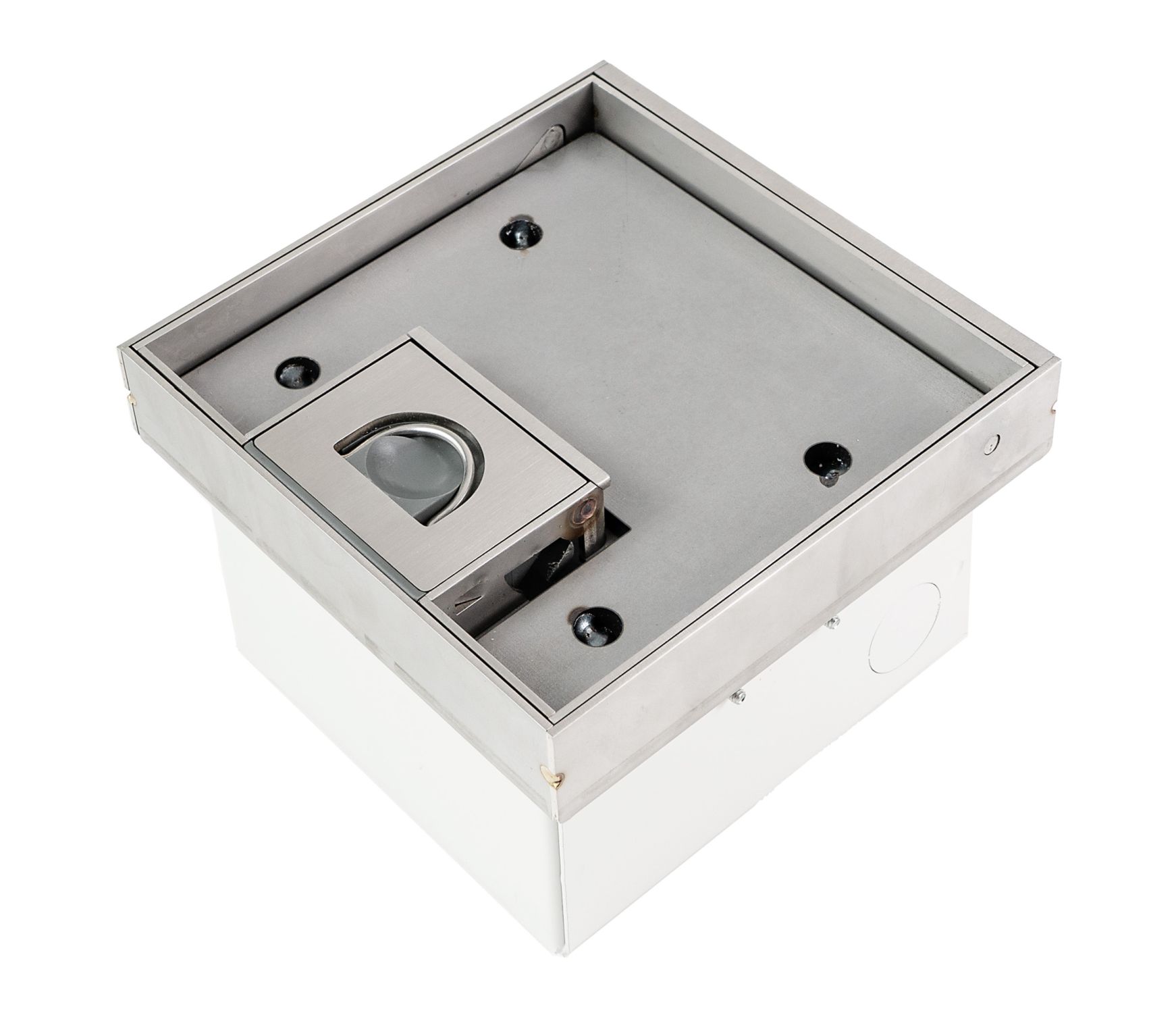

Stainless Steel Floor Box - Heavy Duty 12mm Deep Recess
CAT NO. FB1SDRHD70
| Capacity: | 2 x single auto switch power outlets |
| Box Size: | 150 x 150 x 97mm Deep |
| Lid Material: | Stainless steel |
| Lid Rebate: | 12mm Deep |
| Suitable for: | Heavy duty installations |

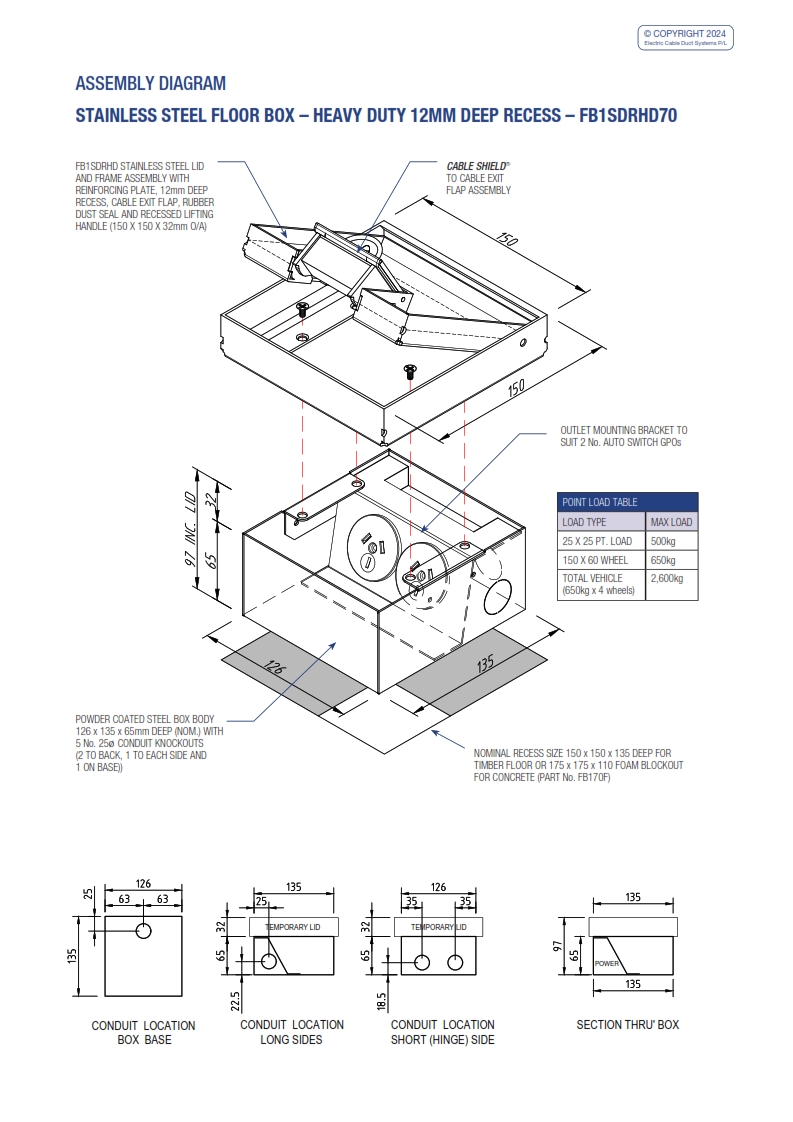

| Load Rating: | Suits vehicle traffic – refer chart on product PDF |
Key Features
- A versatile, practical and decorative solution to your open plan cabling needs.
- Heavy duty – load rated floor box suitable for vehicular traffic.
- Ideal for car showrooms and shopping centres.

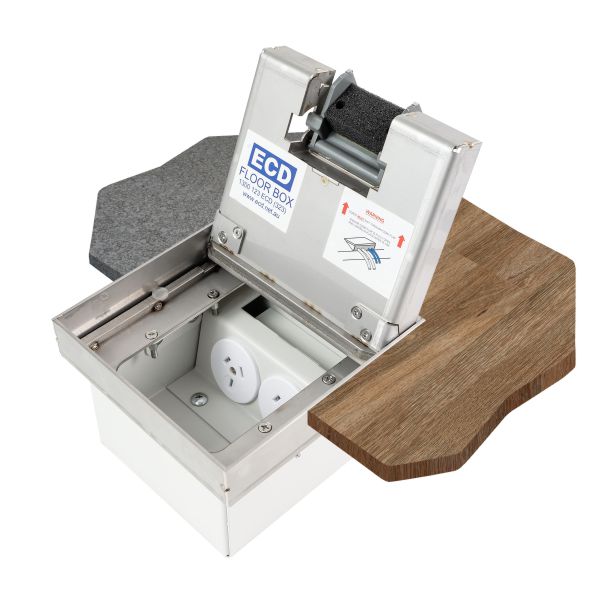

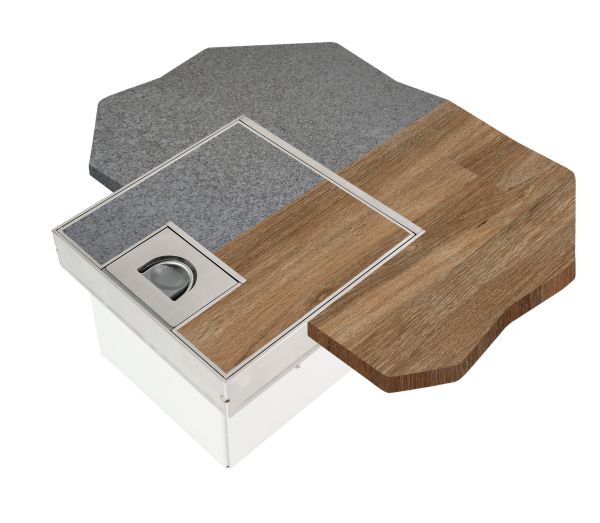

- 12mm rebate for floor finish (typically timber boards or ceramic tiles).
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
- 304 Grade solid stainless steel lid construction with No. 4 Linished finish.
- Robust, large cable exit flap with Cable Shield® and stainless steel lifting handle.
- Capacity for 2 x single auto switch power outlets (supplied).
- Supplied with temporary construction lid.
- This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
