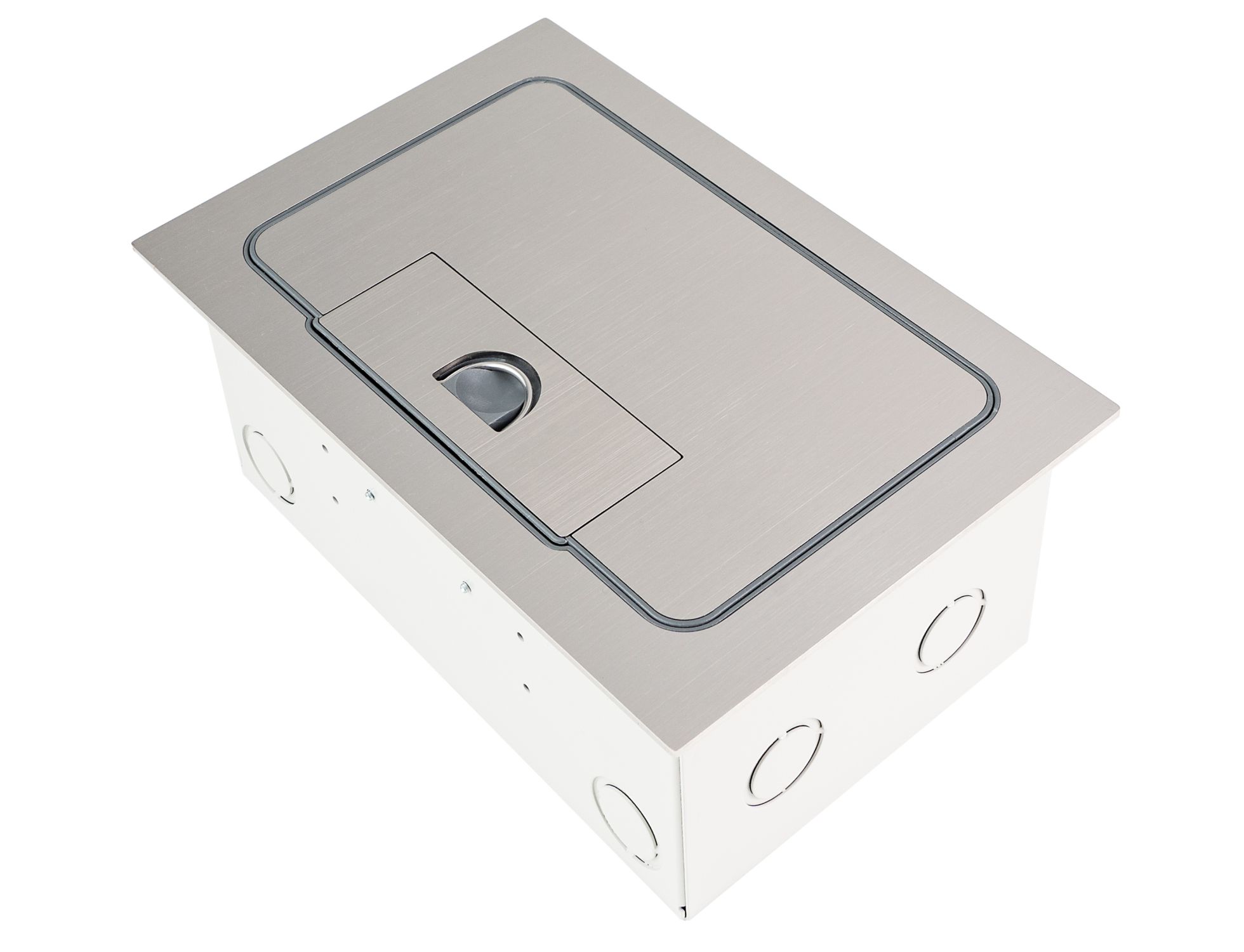

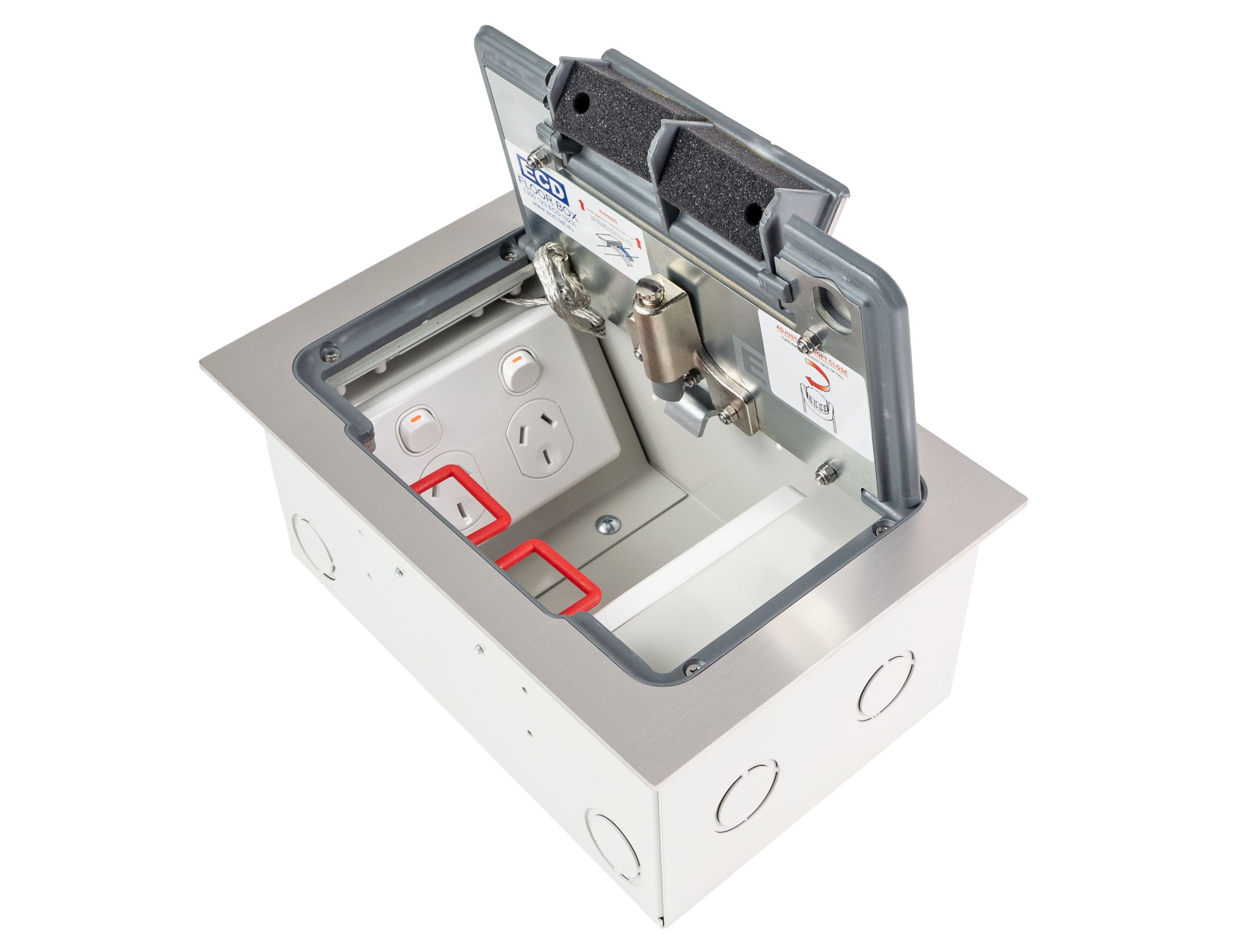

PROTECTOR™ SERIES Flush Floor Box - Square Edged Lid Stainless Steel
CAT NO. FB2SQF
| Capacity: | 2 standard sized plates |
| Box Size: | 240 x 150 x 110mm Deep |
| Features: | Cable Shield™ Frame |
| Lid Material: | Stainless 304 – No. 4 Linished |
| Suitable for: | Cat. 6A & 7A Cabling |
Key Features
- Square Edged Stainless Steel Lid and Frame (not bevelled) to allow flush fitting for floor finish (typically timber, tiles or vinyl).
- ‘Protector’ Series features
- Cable Shield™ Frame assembly to prevent cables being cut (Patent Pending)
- Soft close lid to stop lid from slamming shut
- Cable retainer for easy cable management
- Robust and large capacity cable exit flap with retracing lifting handle.
- Capacity for 2 standard outlet plates (1 x double power & 1 x Data and/or A.V.)
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- 304 Grade Solid Stainless Steel with No. 4 linished finish.
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD floor box range.
- Supplied with temporary construction lid.
- Option to fit cam lock if required.
