PROTECTOR™ SERIES Flush Floor Box - Flush, Stainless Steel
CAT NO. FB4MU70
| Capacity: | 4 x single auto switch power outlets and 6 x data mounts. |
| Box Size: | 240 x 240 x 70 mm Deep |
| Features: | Rubber exit flap to all 3 sides |
| Lid Material: | Stainless 304 – No. 4 Linished |
| Suitable for: | Cat6A & 7A Cabling |
Key Features
- Flush Protector™ Series 304 grade Stainless Steel lid and frame with No. 4 Linished finish.
- Protector™ Series features;
- Cable Shield® Frame assembly to prevent cables being cut – lid frame only. (Patent Certified 2017100897 & Patent Pending 2015204344)
- Soft close lid to stop lid from slamming shut.
- Rubber cable exit flaps to all three sides enables cables to safely exit the lid at any point.

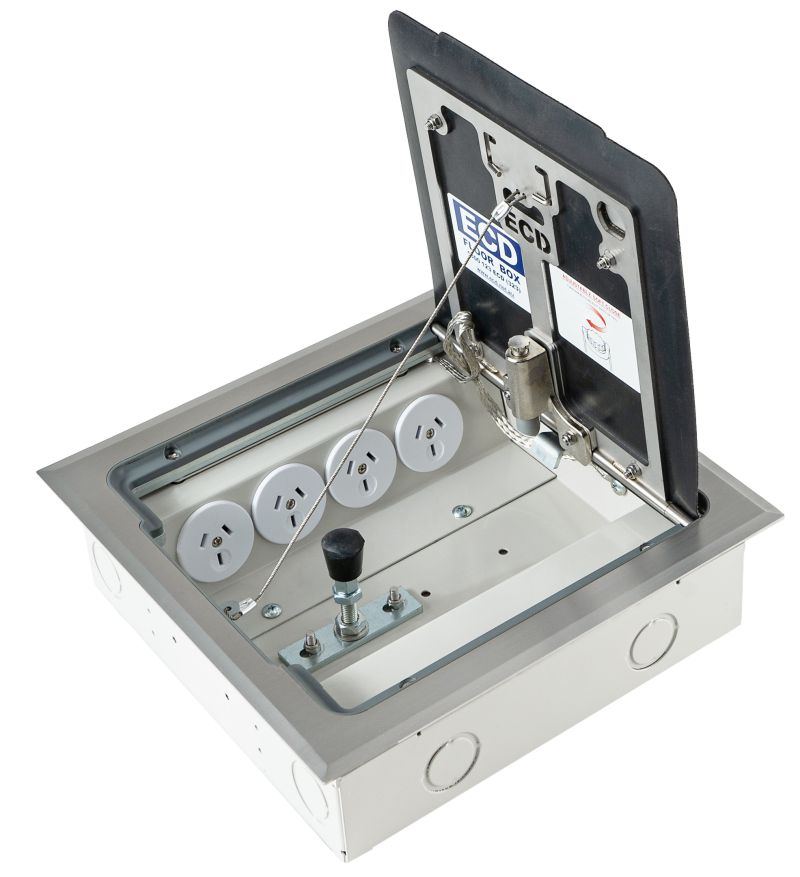

- Capacity for 4 x single auto switch power outlets (supplied) and 6 x data mounts (bezels supplied).
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
- Supplied with temporary construction lid.
- Option to fit cam lock if required. (Ref. FB4MUCL70).
