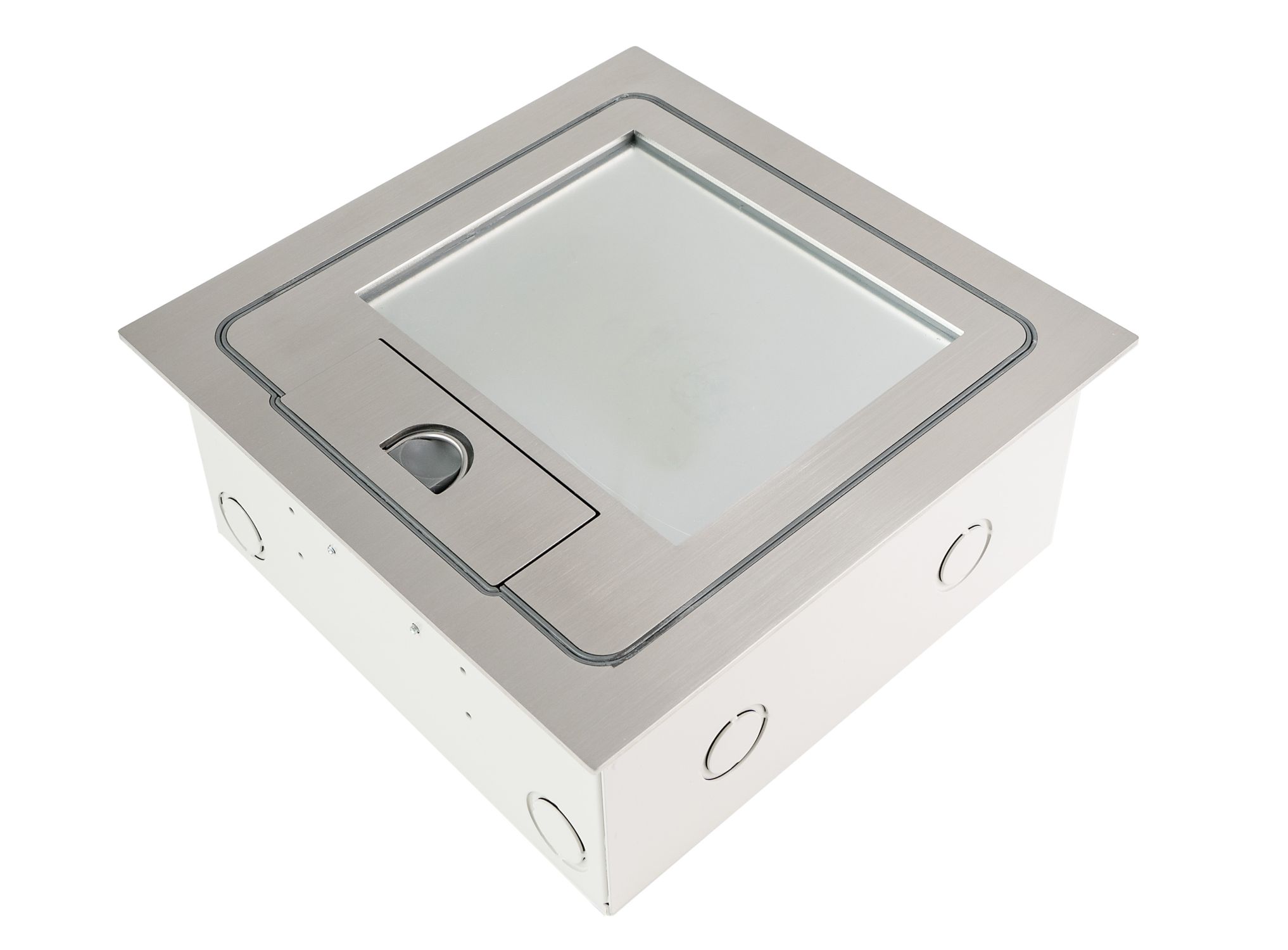

PROTECTOR™ SERIES Flush Floor Box – Recessed, Square Edged, Stainless Steel
CAT NO. FB4SQR8P
| Capacity: | 8 x auto switch G.P.O’s and 2 standard sized plates |
| Box Size: | 240 x 240 x 110mm Deep |
| Features: | Cable Shield™ Frame |
| Lid Material: | Stainless 304 – No. 4 Linished |
| Suitable for: | Cat6A & 7A Cabling |
Key Features
- Recessed “Protector” Series Stainless Steel Lid and Frame with 6mm rebate for floor finish (deeper rebates available to order).
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish (typically timber, tiles or vinyl).
- ‘Protector’ Series features
- Cable Shield™ Frame assembly to prevent cables being cut (Patent Pending)
- Soft close lid to stop lid from slamming shut
- Cable retainer for easy cable management.
- Robust and large capacity cable exit flap with retracing lifting handle.

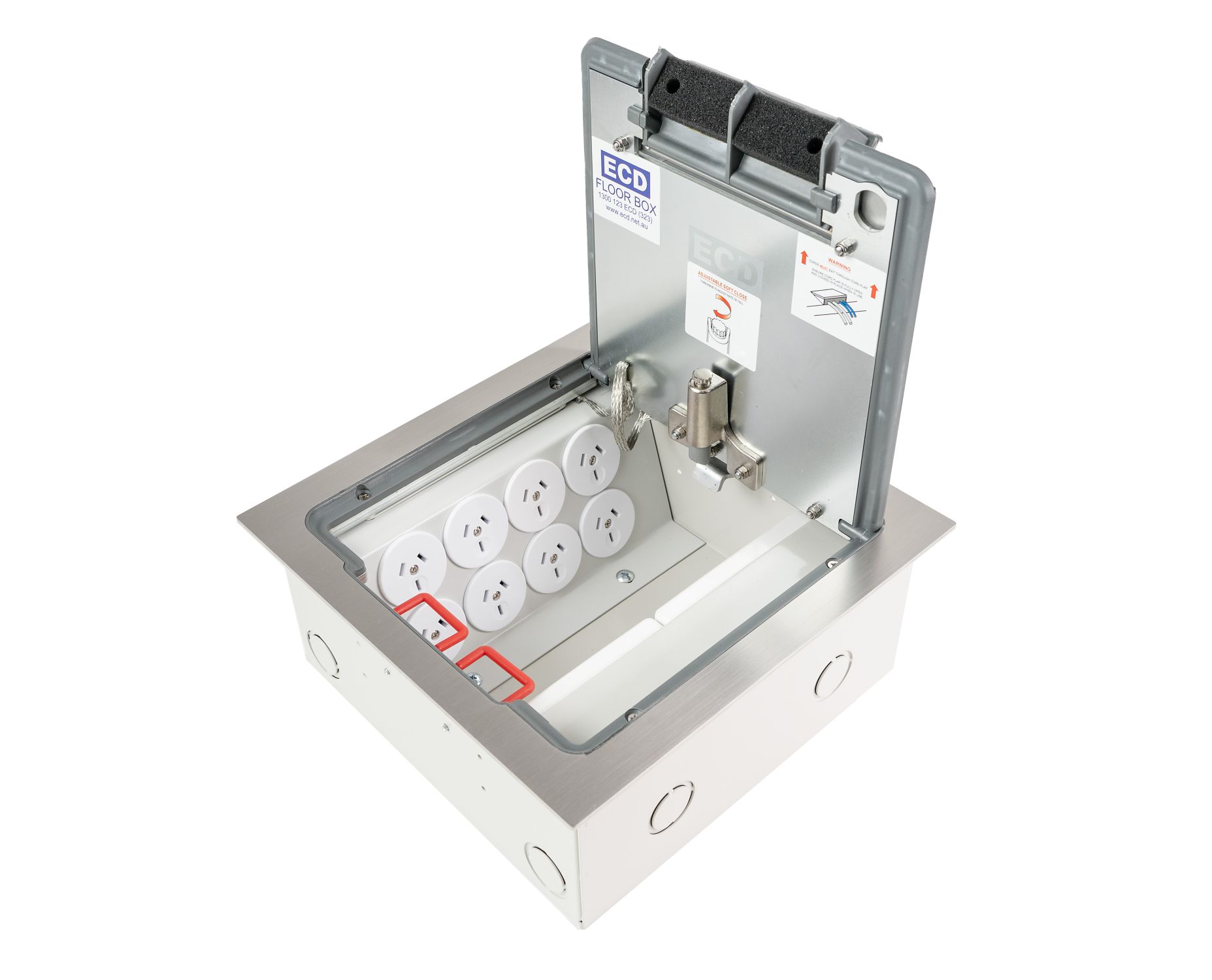

- Capacity for 8 Auto Switch G.P.O.’s & 2 standard Data plates (8 x power & 2 x Data and/or A.V.).
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- 304 Grade Solid Stainless Steel.
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD floor box range.
- Supplied with temporary construction lid.
- Option to fit cam lock if required.
