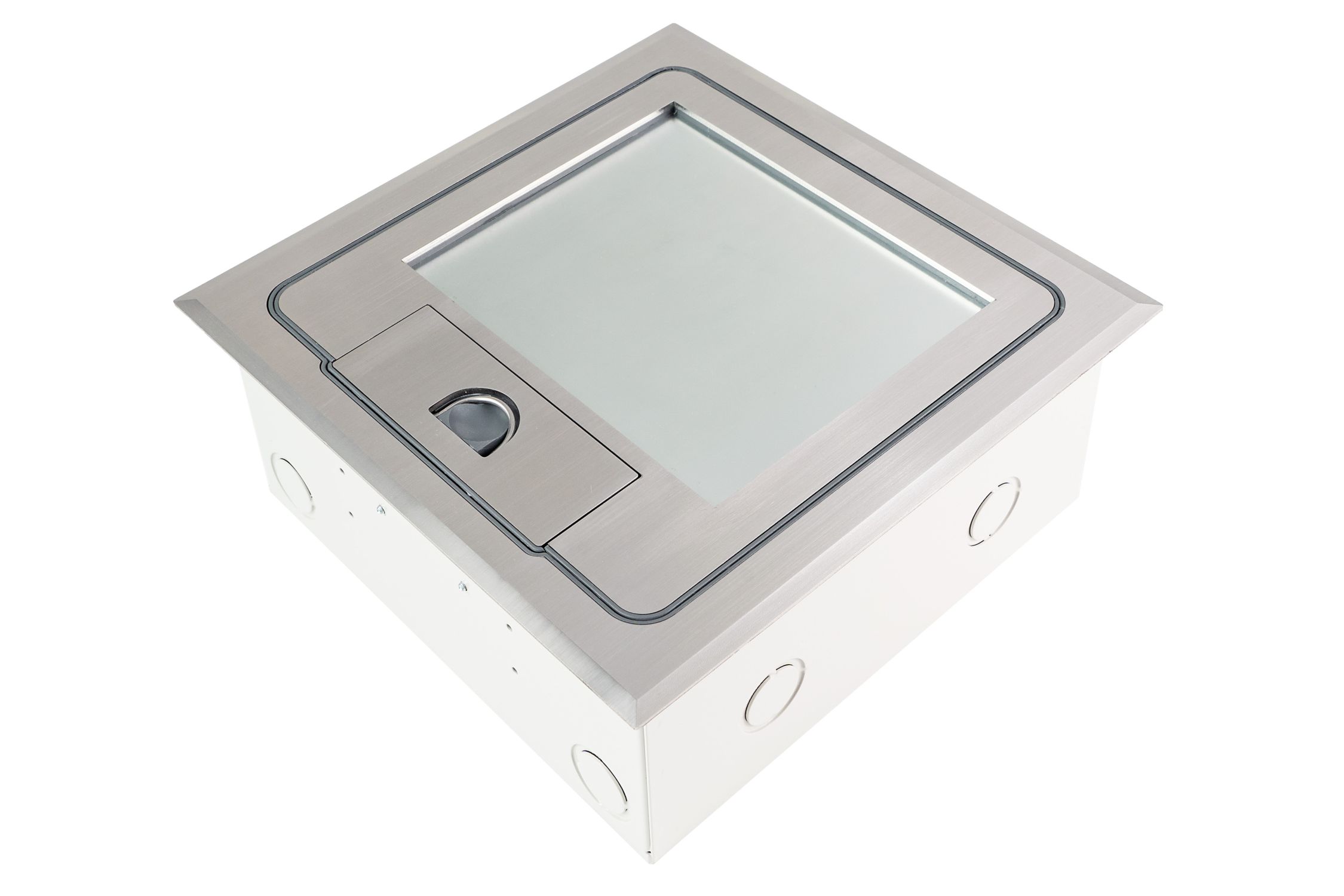

PROTECTOR™ SERIES Flush Floor Box - Recessed Stainless Steel
CAT NO. FB4SR
| Capacity: | 4 standard sized plates |
| Box Size: | 240 x 240 x 110mm Deep |
| Features: | Cable Shield™ Frame |
| Lid Material: | Stainless 304 – No. 4 Linished |
| Recess: | 6mm Deep |
| Suitable for: | Cat. 6A & 7A Cabling |
Key Features
- Recessed “Protector” Series Stainless Steel Lid and Frame with 6mm rebate for floor finish (typically carpet or vinyl).
- ‘Protector’ Series features
- Cable Shield™ Frame assembly to prevent
cables being cut (Patent Pending) - Soft close lid to stop lid from slamming shut
- Cable retainer for easy cable management
- Cable Shield™ Frame assembly to prevent
- Robust and large capacity cable exit flap with retractable lifting handle.
- Capacity for 4 standard outlet plates (2 x double power & 2 x Data and/or A.V.)
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- 304 Grade Solid Stainless Steel with No. 4 linished finish.
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD floor box range.
- Supplied with temporary construction lid.
- Option to fit cam lock if required.
* Click images to enlarge
