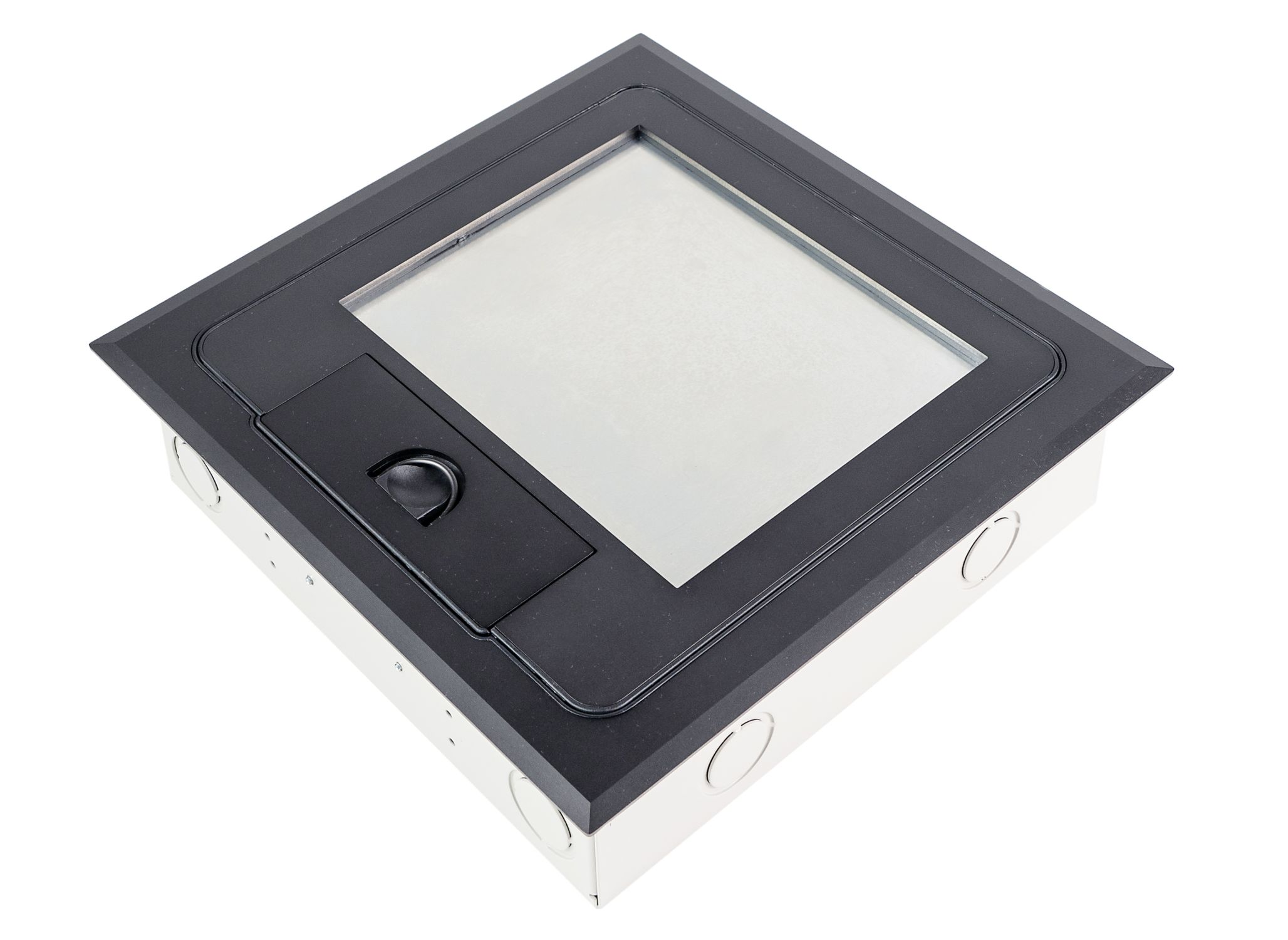

PROTECTOR™ SERIES Flush Floor Box - Recessed, Black
CAT NO. FB4SRBK70
| Capacity: | 4x single auto switched power outlets(supplied) & 6x data mounts |
| Box Size: | 240 x 240 x 70mm Deep |
| Features: | Cable Shield® Frame with Soft Close Lid |
| Lid Material: | Stainless Steel – black plated |
| Recess: | 6mm Deep |
| Suitable for: | Cat. 6A & 7A Cabling |
Key Features
- Recessed Protector™ Series Black Plated Stainless Steel lid and frame with 6mm rebate for floor finish (typically carpet or vinyl).
- Protector™ Series features
- Cable Shield® Frame assembly to prevent cables being cut. (Patent Certified 2017100897 & Patent Pending 2015204344)
- Soft close lid to stop lid from slamming shut
- Cable retainer for easy cable management
- Robust and large capacity cable exit flap with retractable lifting handle.

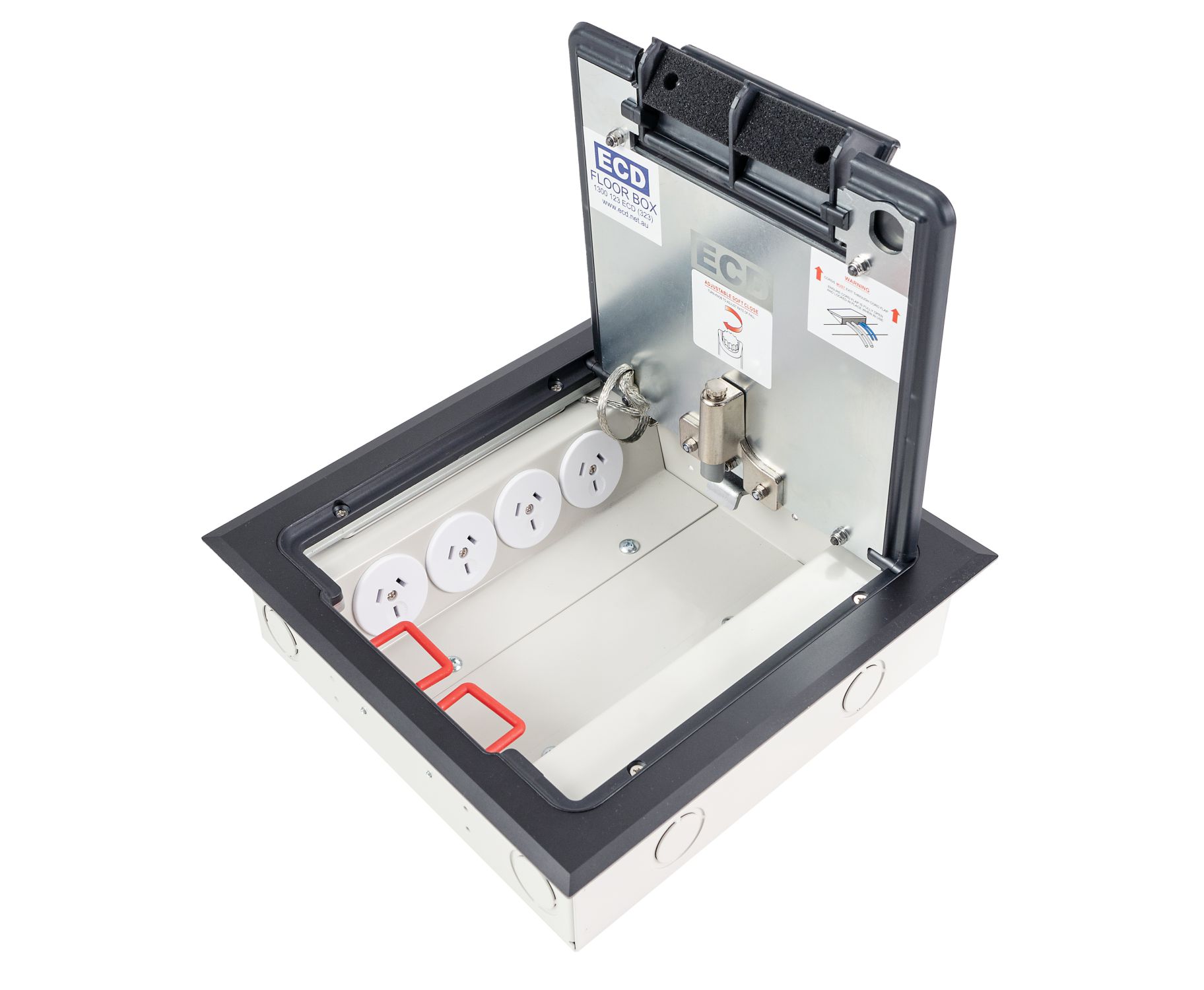

- Capacity for 4 x single auto switched power outlets(supplied) and 6 x data bezel mounts (supplied).
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- 304 Grade Solid Stainless Steel – black plated.
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
- Supplied with temporary construction lid.
- Option to fit cam lock if required.
