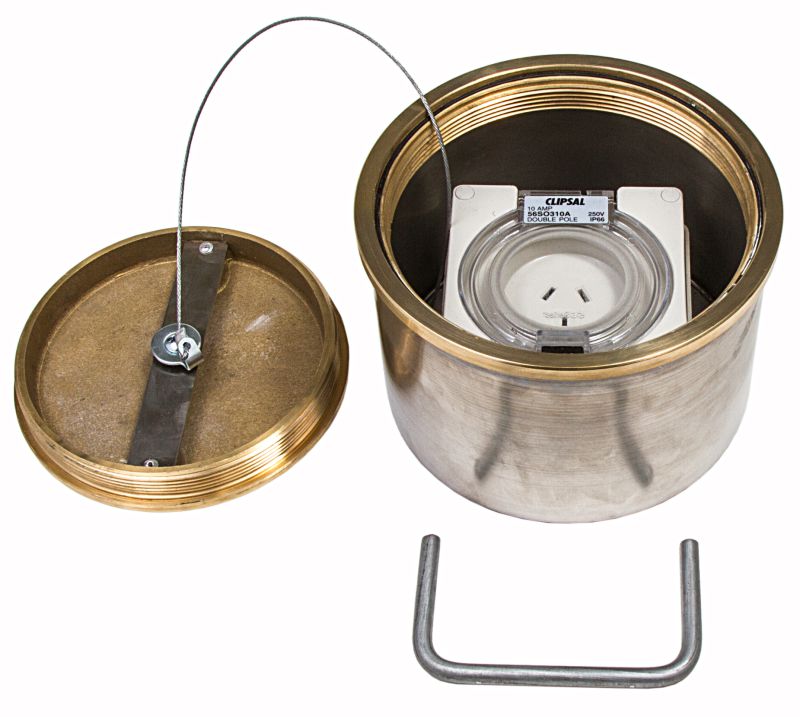

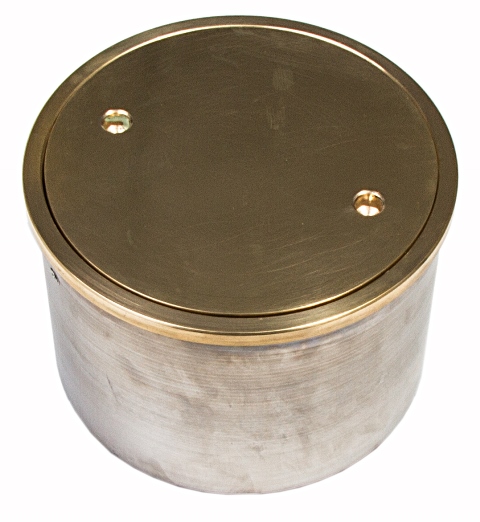

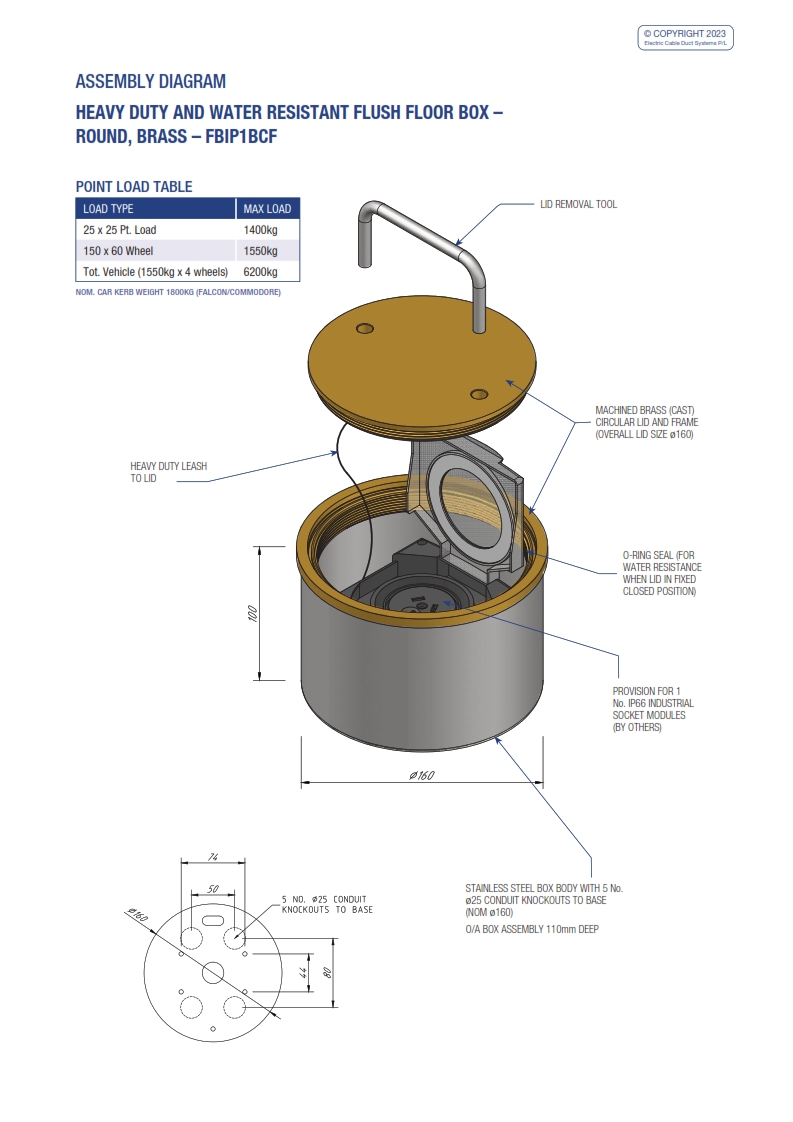

HEAVY DUTY & WATER RESISTANT Flush Floor Box – Round, Brass
CAT NO. FBIP1BCF
| Features: | Single GPO or Dual Data Plate |
| Lid Size: | 160mm Diameter |
| Lid Finish: | Brass (Cast) |
| Box Depth: | 110mm deep |
| Lid Handle: | Opening Handle supplied |
Key Features
Heavy duty and water resistant – load rated floor box suitable for vehicular traffic.
Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish (typically timber, tiles or vinyl).
Screw in Brass lid restrained with heavy duty leash.
Capacity for 1 No. IP66 Industrial socket, 10 or 15 amp autoswitched GPO or Dual Data plate.
Lid opening handle supplied.
Round lid and frame incorporates rubber ‘O’ ring seal
* Click images to enlarge
