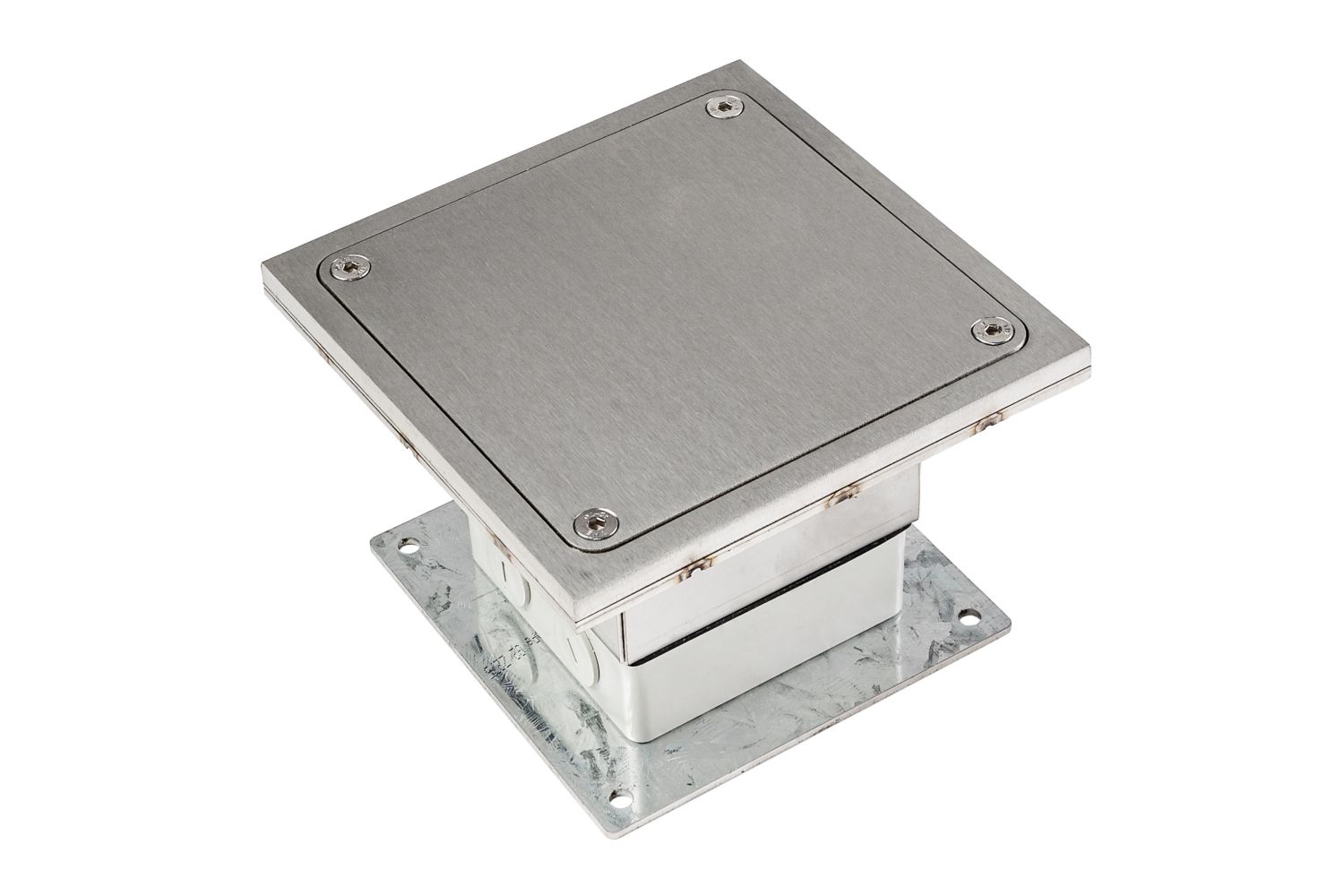

HEAVY DUTY & WATER RESISTANT Flush Floor Box - Square Edged, Stainless Steel
CAT NO. FBIP1SQF
| Load Rating: | Suits vehicle traffic – See Download for details |
| Capacity: | 1 No. IP66 Industrial socket module |
| Box Size: | 175 x 175 x 141mm deep |
| Lid Material: | Stainless 304 – No. 4 Linished |
Key Features
- Heavy duty – load rated floor box suitable for vehicular traffic.

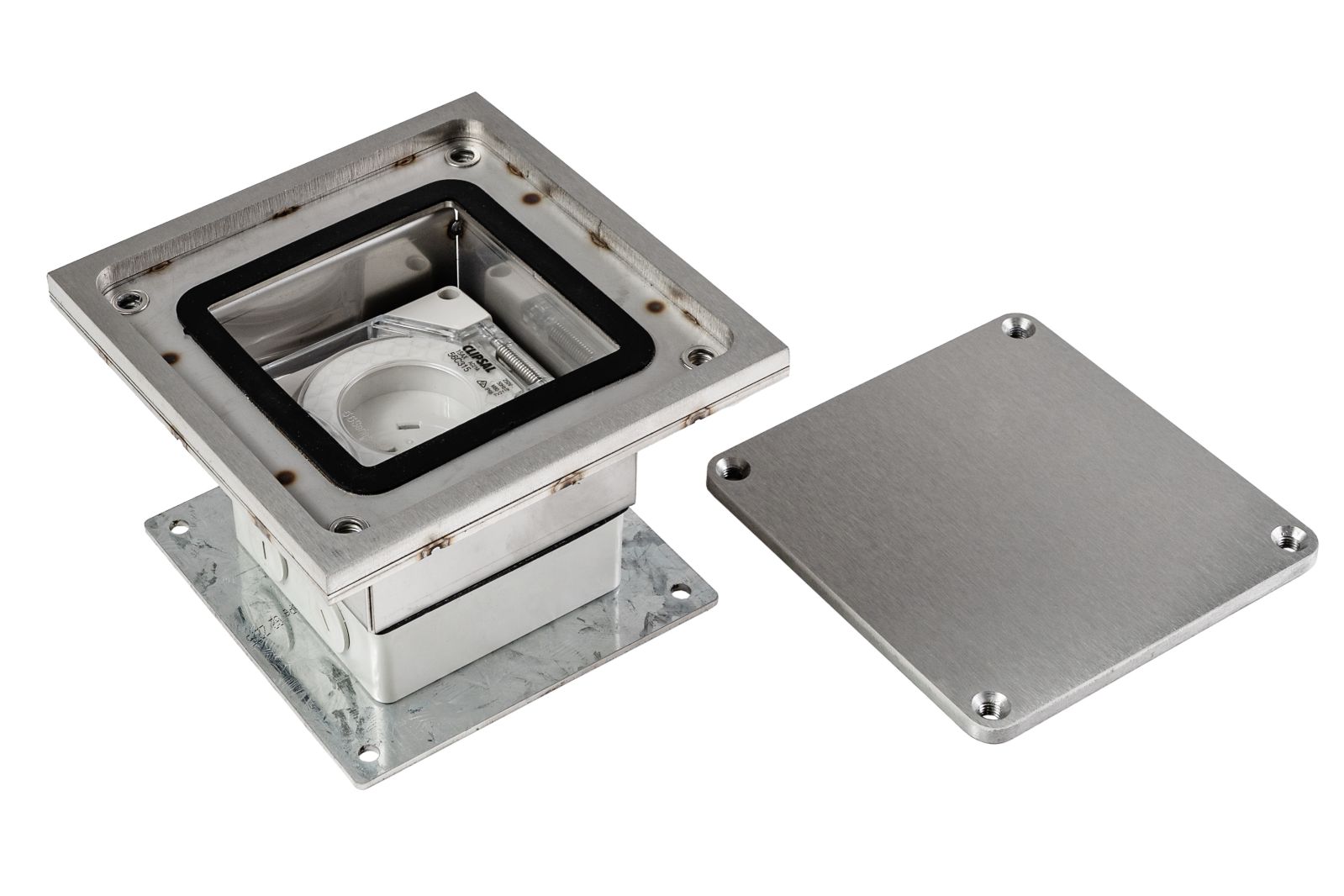

- Square, drop in, screw fixed lid with neoprene gasket (for water resistance when lid is in closed position). Note: Not suited for external use.
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish (typically timber, tiles or vinyl).
- 304 Grade solid stainless steel lid (8mm thick) with No. 4 Linished finish to meet P1 requirements for slip resistance in public spaces (dry areas).
- Capacity for 1 No. IP66 Industrial socket module (enclosure supplied, excludes socket outlets).
- This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
* Click images to enlarge
