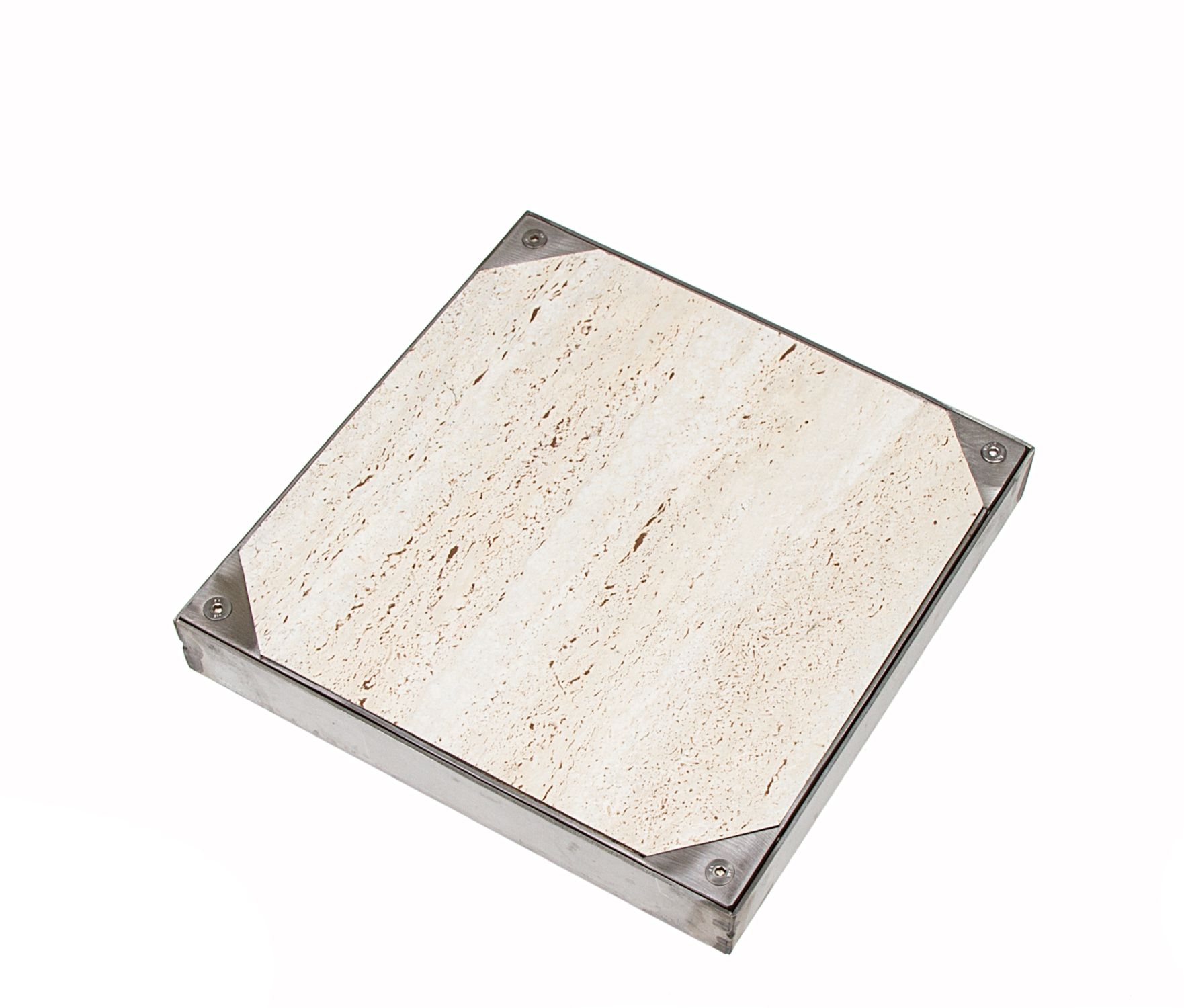

HEAVY DUTY & WATER RESISTANT Flush Floor Box - Deep Recessed, Square Edged, Stainless Steel
CAT NO. FBIP4SDR
| Load Rating: | Suits vehicle traffic – See Download for details |
| Capacity: | 4 No. IP66 Industrial socket modules |
| Box Size: | 275 x 275 x 166mm deep |
| Lid Material: | Stainless 304 – No. 4 Linished |
| Lid Rebate: | 22mm deep |
Key Features
- Heavy duty – load rated floor box suitable for vehicular traffic.
- Square, drop in, screw fixed lid with neoprene gasket (for water resistance when lid is in closed position). Note: Not suited for external use.
- 22mm deep recess in lid for floor finish (typically polished timber boards, ceramic tiles or stone).
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
- 304 Grade solid stainless steel.

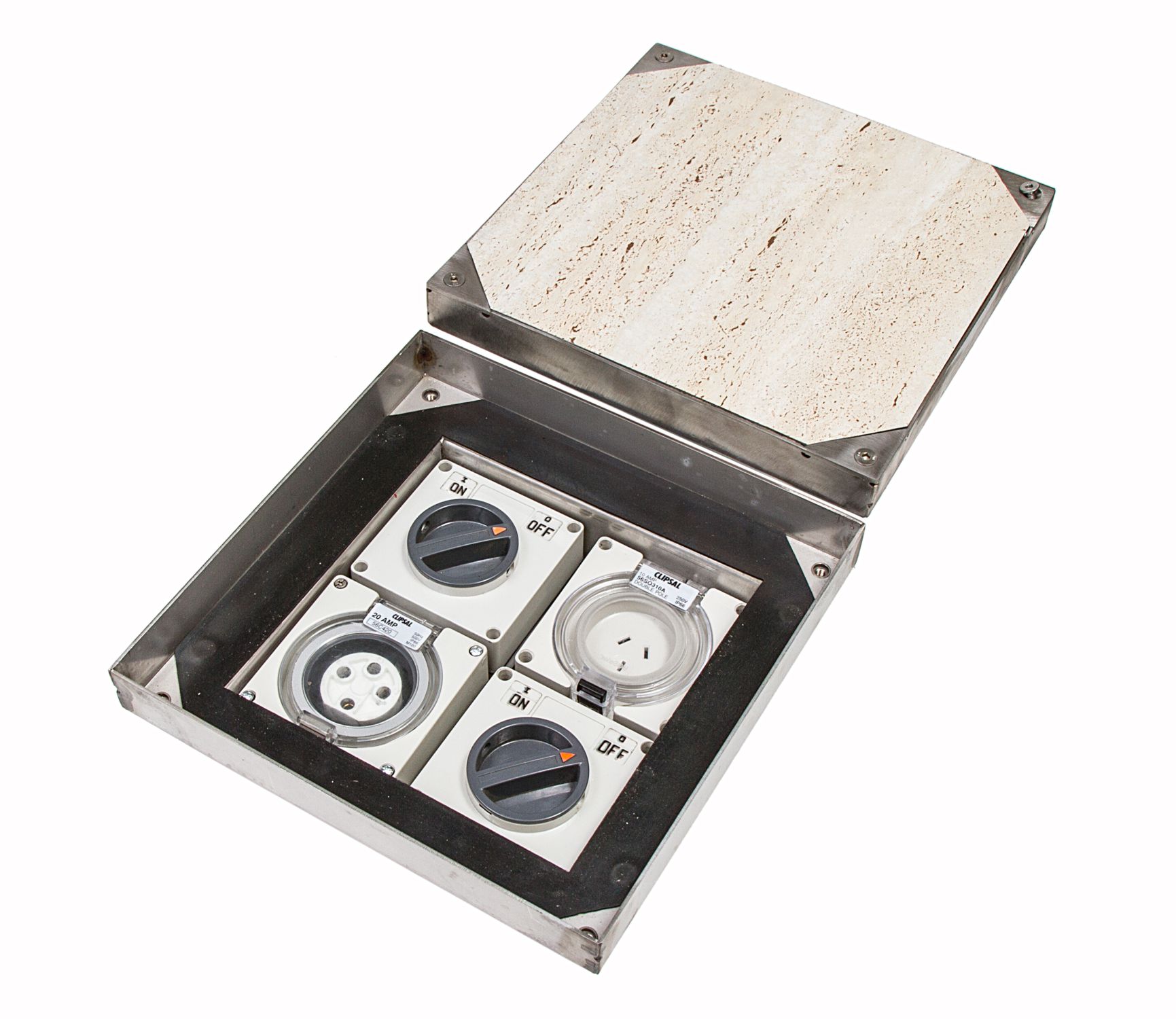

- Capacity for 4 No. IP66 Industrial socket modules (enclosures supplied, excludes socket outlets).
- This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
