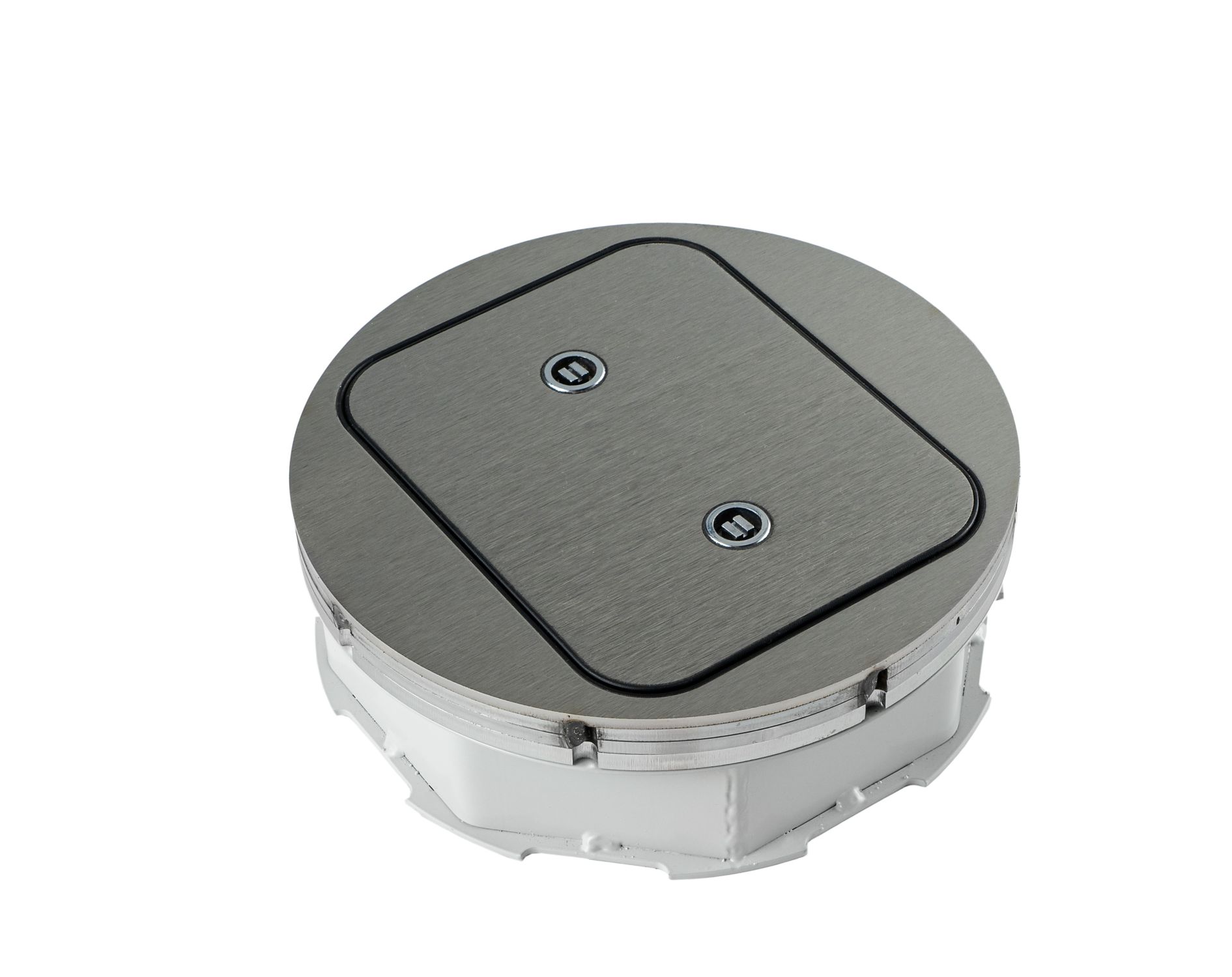

HEAVY DUTY & WATER RESISTANT Flush Floor Box - Round, Stainless Steel
CAT NO. FBIPW3P
| Water Resistant: | IP44 Rating |
| Slip Resistant: | P3 Rating |
| Load Rating: | Suits vehicle traffic – See Download for details |
| Capacity: | 3 x single auto switch power outlets |
| Box Size: | 250mm dia. x 80mm deep |
| Lid Material: | Stainless 304 – 36 Grit Linished |
| Features: | Cable Shield® Frame |
Key Features
- Ideal for use in shopping centres.
- Heavy duty – load rated floor box suitable for vehicular traffic.

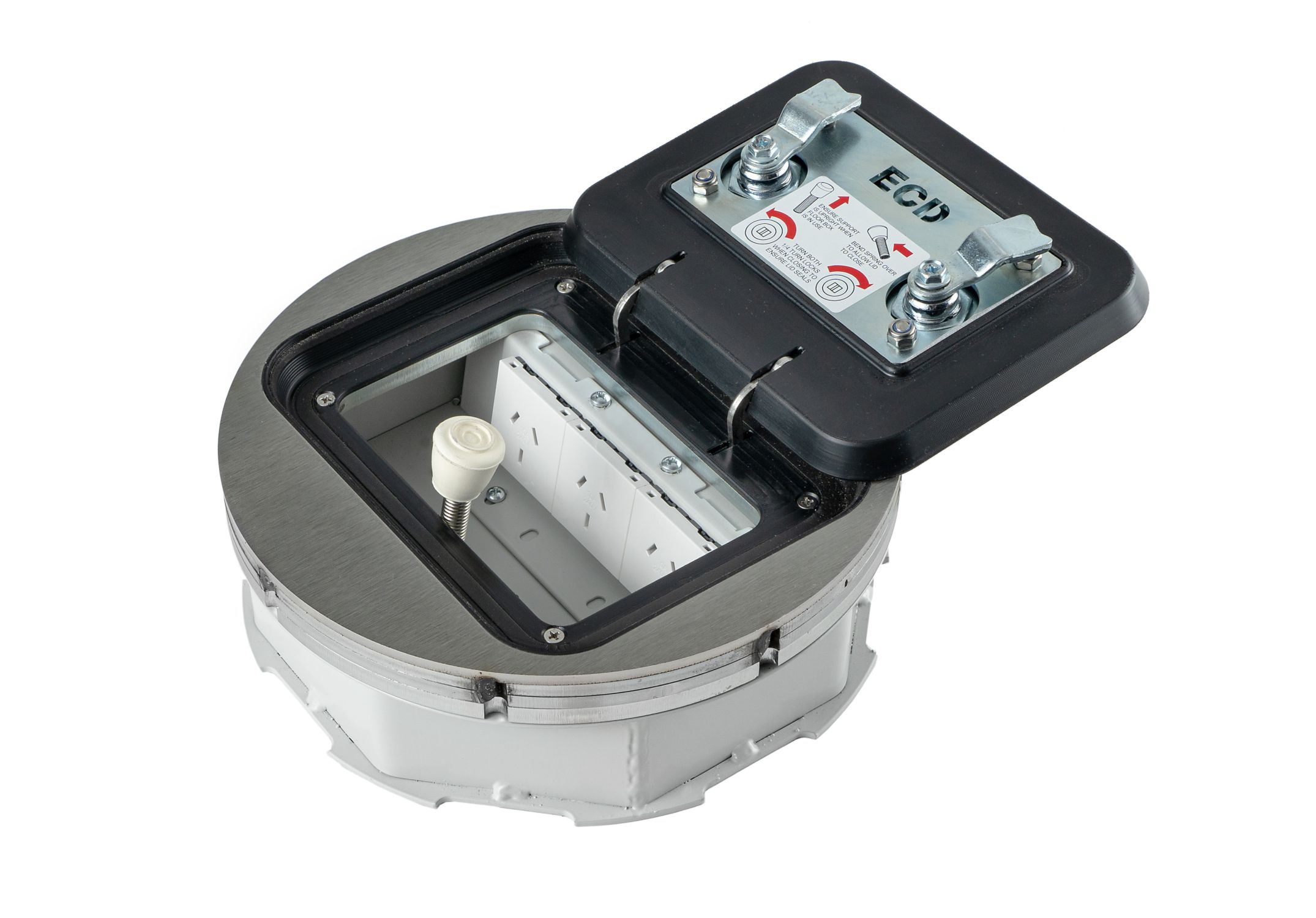

- Round, hinged lid with 2 x neoprene gaskets (for water resistance when lid is in closed position – IP44). Note: Not suited for external use.
- Protector™ Series features
• Cable Shield® Frame assembly to prevent cables being cut. (Patent Certified 2019268210 & 2015204344) - Lockable with 2 keys/lifting tools supplied.
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish (typically timber, tiles or vinyl).
- 304 Grade solid stainless steel lid with 36 Grit Linished finish to meet P3 requirements for slip resistance in public spaces (wet areas or supermarket/shopping centres).
- Capacity for 3 x single auto switch power outlets (supplied). Other configurations available to order.
- Supplied with temporary construction lid.
- This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
