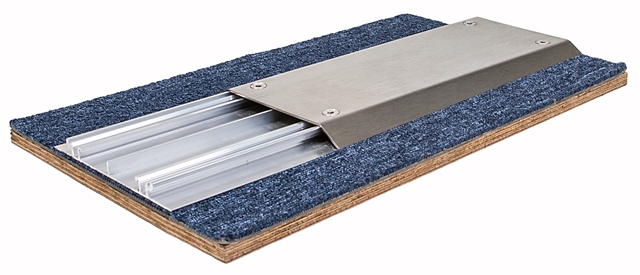

LOW PROFILE FLOOR DUCT – Carpet Ramp
CAT NO. FFD10012DCR
| Mounting: | Concealed with carpet ramps |
| Size: | 106 x 12 mm (excluding ramps) |
| Body: | 2 division extruded aluminium |
| Cover: | Galvanised steel |
Key Features
- Fully accessible floor duct system suitable for commercial, education
and retail applications where chasing of trenches in the concrete floor
is not possible or is cost prohibitive. - Used for reticulation of cables/services to isolated locations within a
room/space. - Suited to flexible floor finishes like carpet and vinyl.
- Extruded aluminium duct body with continuous threadform sections
for easy securing of duct covers and other accessories. - Segregated to suit multiple services including power, data, comms,
with offset barrier for greater data/comms capacity. - Multiple duct runs can be mounted adjacent for greater cable
capacity. - Robust galvanised steel duct covers to suit foot traffic.

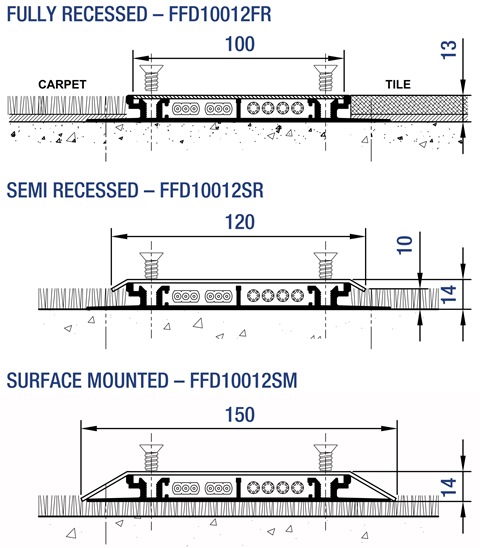

- Carpet ramps on each side of the duct enables the floor finish
(eg. carpet) to fit over the duct for a neat & concealed installation. - Carpet ramp dimensions comply with AS/NZS1428.1 clause 10.5

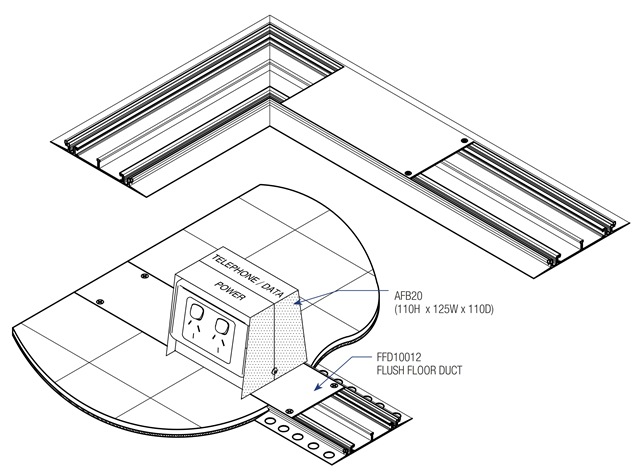

Threshold Ramps to provide ease of accessibility (wheelchairs, etc.). - 90 degree bend kits available in left and right hand configurations to
assist with easy on site installation. - Wall and skirting kits available for easy transition of cables into the
duct body. - Compatible with a range of ECD standard surface mount floor boxes
and Umbilicals. - This product has been examined in accordance with AS3000 and
A.C.M.A. requirements.
