Soft Wired Mounting Accessories
CAT NO. **MB
| Suitable for: | Mounting of soft wired Power Modules & data |
| Capacity: | 2 or 4 gang Power Modules Up to 6 x data |
| Colours: | Black & White |
Key Features

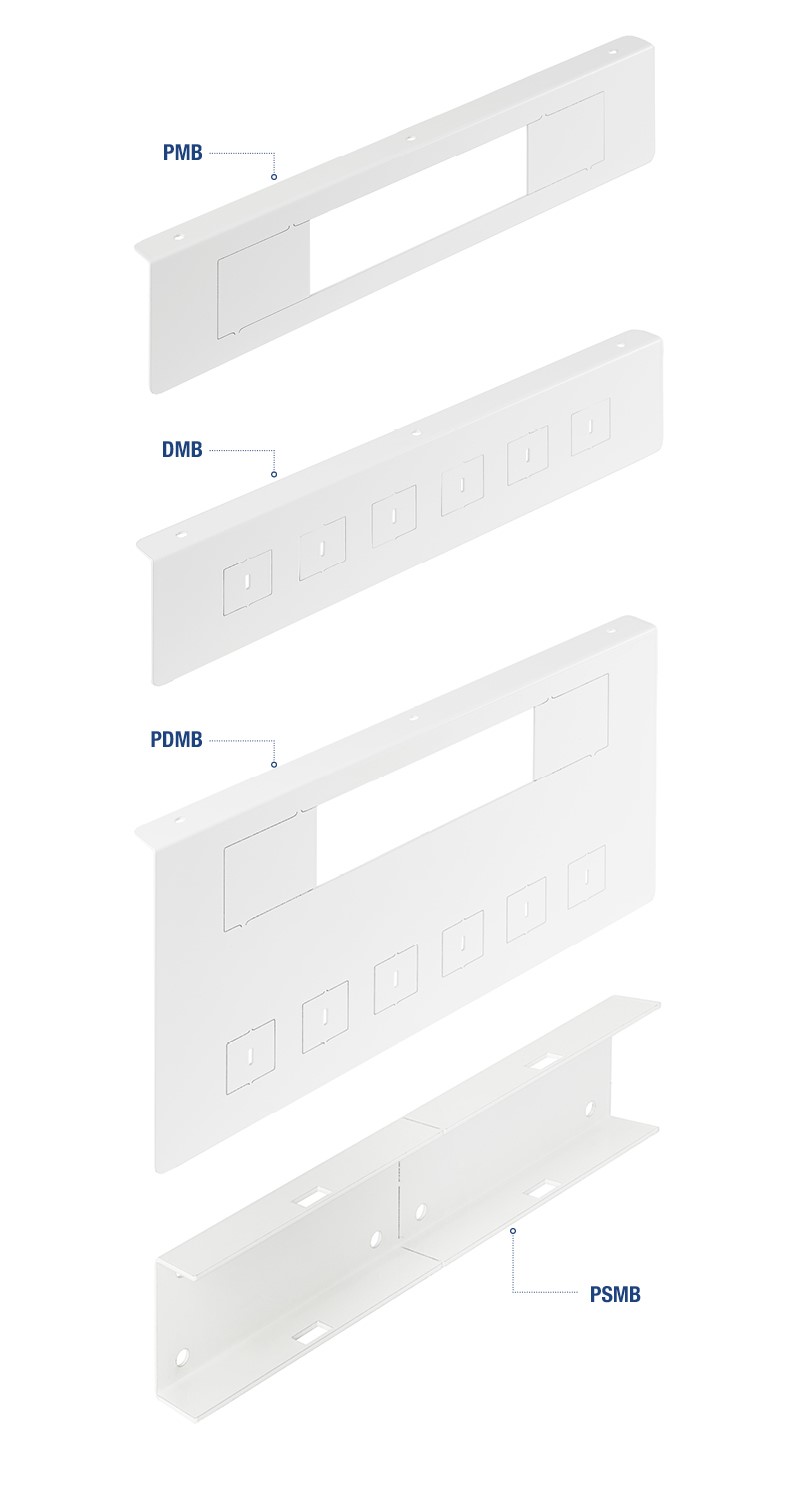

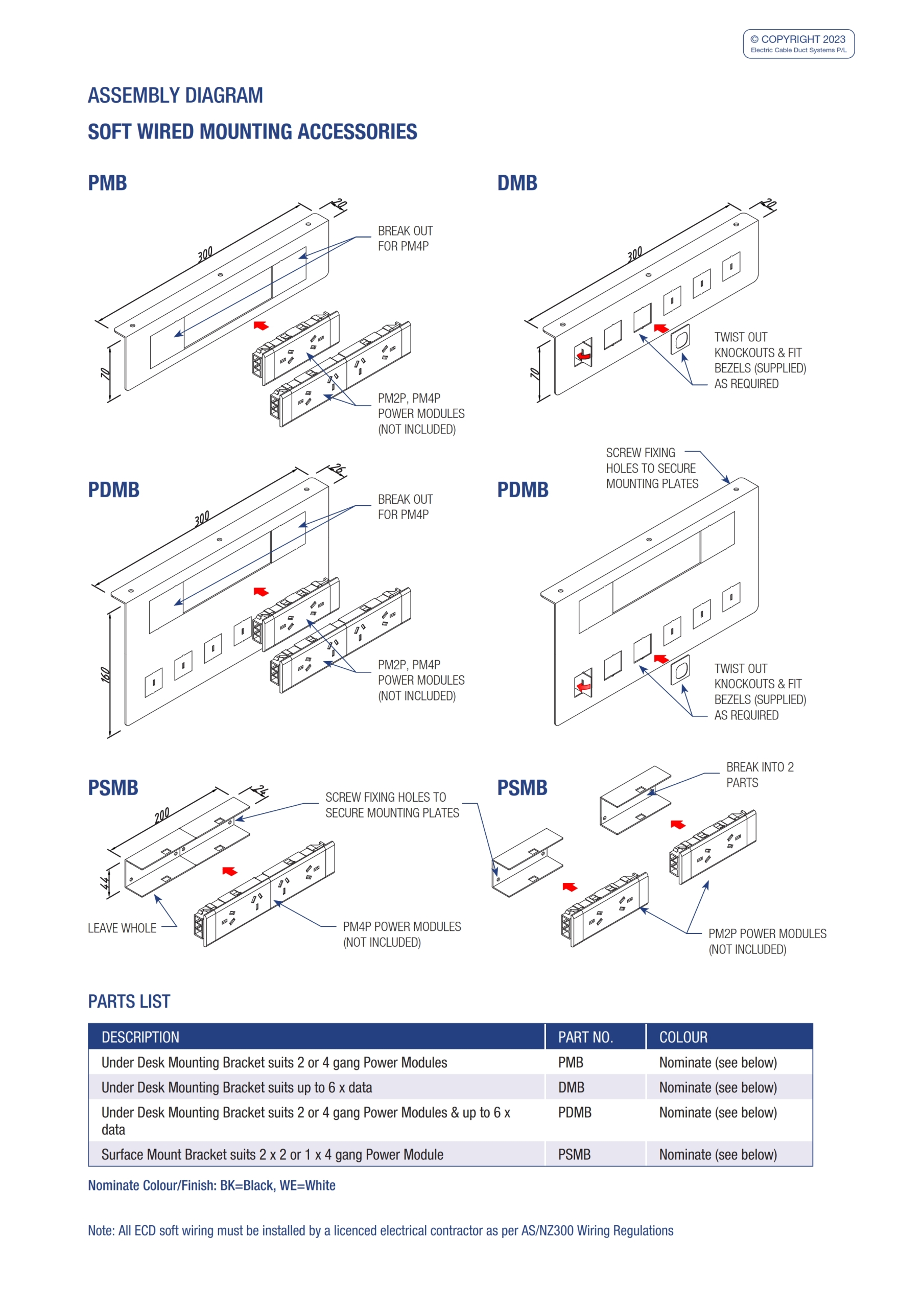

- PMB, DMB, PDMB – used to mount PM Power Modules (ECDPM2P/ECDPM4P) and/or data – typically in under desk locations.
- PMB accepts 2 gang Power Modules (ECDPM2P) in opening as supplied or 4 gang Power Modules (ECDPM4P) by removing side break off tabs to increase opening.
- DMB accepts up to 6 x data via twist out knockouts & bezels provided.
- PDMB accepts 2 or 4 gang power modules (ECDPM2P/ECDPM4P) and up to 6 x data (bezels provided).
- Can be used as stand alone or in conjunction with Wire Cable Basket (WCB) by mounting directly adjacent to the basket.
- PSMB can be used for stand alone mounting of Power Modules. Leave whole for 1 x ECDPM4P or break in half for to mount 2 x ECDPM2P.
- Compatible with the ECD Soft Wiring System.
- Standard colours are Black & White.
* Click images to enlarge
